The transaxle era plays an important role in Porsche history. The Porsche transaxle cars, of which the innovative but misunderstood 924 was the forerunner, proved to be successful beyond all expectations for the Stuttgart manufacturer. Created at first as a potential new sports model for Volkswagen, the 924 was dropped by VW when it was well down the development road, so Porsche brought the project back under its own roof. Being developed simultaneously was the 928, and it served Porsche well to produce two cars on similar platforms at the same time. The 928 was developed for an altogether different driver, this model being Porsche’s first foray into the luxury sports car market. Its 18-year lifespan illustrates how successfully the model was reinvented and given ever more performance and luxury. As the 924 neared the end of its production life, its replacement, the sportier 944, was positioned as a higher performer in the range. The 924 and 944 were produced in tandem for a while as the 924 refused to die, but eventually it was phased out and the 944 was introduced with more power and greater appeal. The final model in the transaxle range, the 968, was designed by Harm Lagaaij who was also responsible for the 924 design. He regards the 968 as the best and most refined of the transaxle cars.

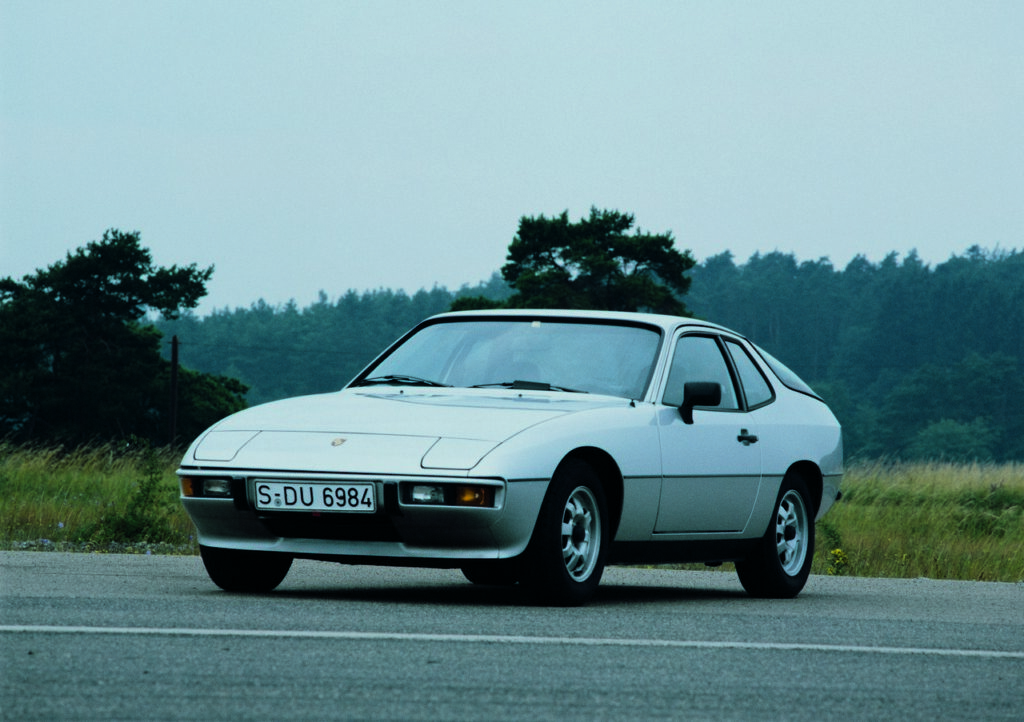

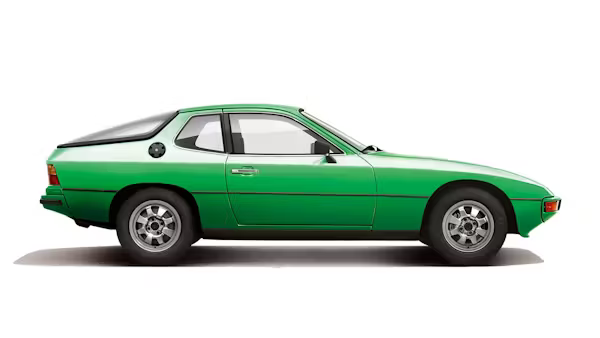

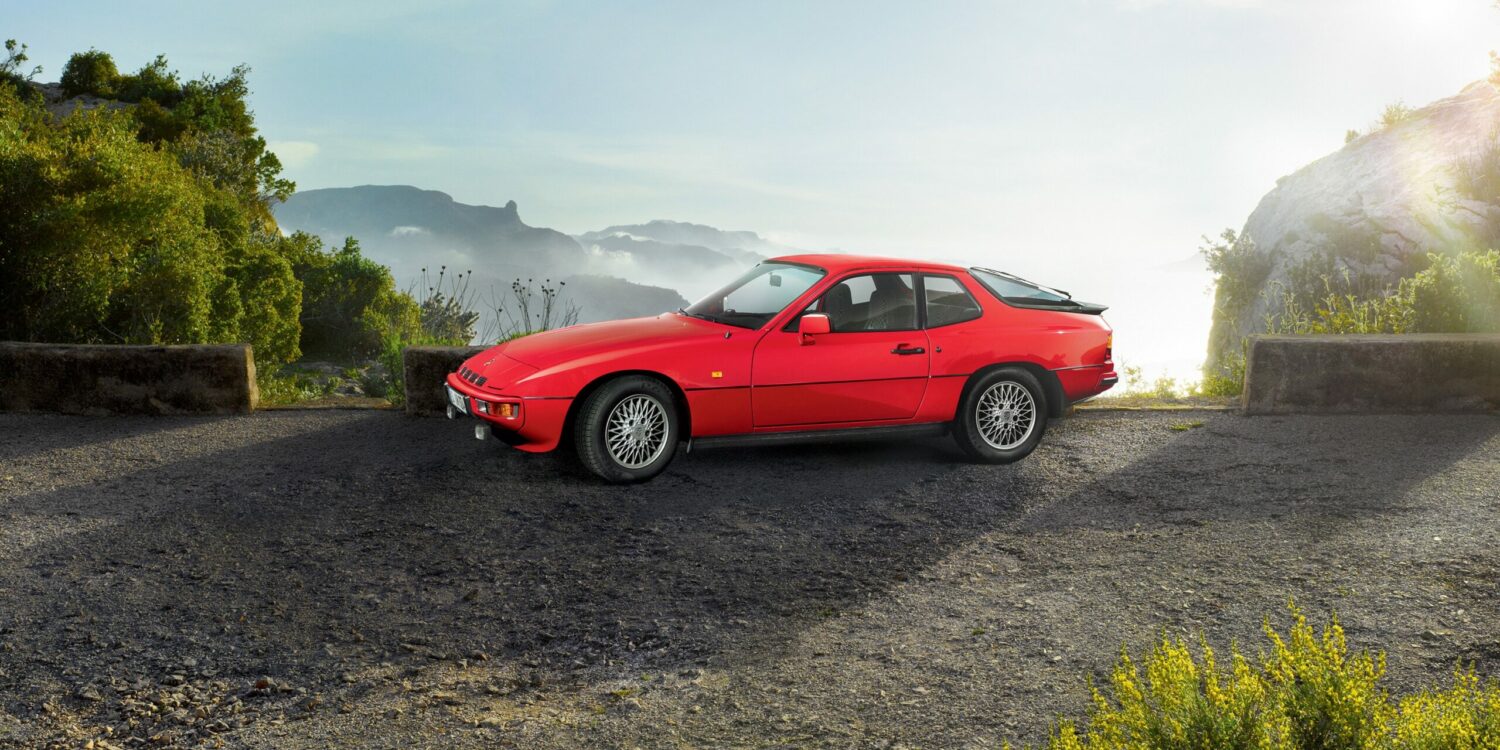

The Porsche 924
The 924 originated as a contract design by Porsche for Volkswagen, based mainly on readily available parts from the VW parts bin. VW chose to cancel plans late in the project for financial reasons. Porsche then bought the rights to the design and produced the car, having VW assemble the cars at its Audi plant in Neckarsulm. Initial configuration was a 2.0L inline-4 SOHC engine with solid front disc and rear drum brakes. Porsche then proceeded through a series of upgrades to improve the performance of the car to meet the public's expectations of Porsche performance. Upgrades involved better brakes, optional sport suspension, 5-speed transmissions, and more power for the engine. Comfort and convenience upgrades included the addition of AC, power windows, power mirrors and better stereo. Other steps were taken by Porsche to try to improve the car's appeal in the market, starting with special editions such as the Martini Edition in 1977, the Limited Edition in 1978 and the Sebring edition in 1979.
The real boost in performance the 924 needed was achieved with the release of the 924 Turbo, also known as the 931, in late 1979. Compression was reduced slightly from the 924 to handle the boost, and a new head was implemented with better flow characteristics. Boost levels were moderate, 8-10psi. The engine was fitted with an oil cooler for durability. The 931 came with a 5-speed transmission from the start, but had the early-style disc/drum brakes. It became clear that the increased performance of the 931 needed the better, later, optional 4-wheel vented disc brakes. Later versions of the 931 received improved digital ignition systems.
In 1981 the 924 Carrera GT was released, known as the 937. Cosmetically, it foreshadowed the 944, with a wide front end to cover the wider track, but the rear width was strictly increased through the use of small add-on flares, as seen currently on the 911 GT2 cars. The extra bodywork was all plastic, not fiberglass. The better brakes were standard, but with slightly different brake circuitry due to the different suspension geometry. 16" Fuchs rims and upgraded suspension and brakes were standard. The engine made substantially more power than the 931 thanks to an intercooler, higher boost, and lower compression. The intercooler was mounted integral to the charge tube going from the turbo to the throttle body, right over the cam cover, to minimize turbo lag. However, getting airflow to this location was difficult, and resulted in the scoop on the hood over the cam cover. Only 406 of these were made, and none officially imported to the US, though a handful made it in through private importers (grey-market).
Later on the Carrera GTS and GTR were released. These were not referred to by distinct model numbers, as they were developed from the 937 Carrera GT, and so are also considered 937's. They were, by contrast with the other models, built at Porsche in Zuffenhausen. The GTS had an intercooler in the nose, as later reused in the 944 Turbo, with fixed headlights behind plexiglass covers forced by removal of the headlight linkage to accommodate the intercooler ducting. Weight was lowered and power improved, but the car was still street-legal, at least in Europe. 59 GTS's were made, with 15 in Club Sport configuration - further weight-reductions, rollcage, etc. The GTR was a pure racecar, developed for the endurance races of LeMans, Sebring, and the like, making 375bhp and beyond, and weighing even less. Every detail of the cars were heavily modified for racing, especially the suspension, with plenty of details for endurance racing, like air jacks, dry-break fuel cell refueling, etc. The roll cages were particularly neat, being constructed of welded alloy, well gusseted and bolting into the car's body at 14 points. A matching strut tower brace added further stiffening in front of the firewall. The intercooler for the GTR was much larger besides than the GTS, but also located in the nose of the car. Only 18 GTR's were constructed.

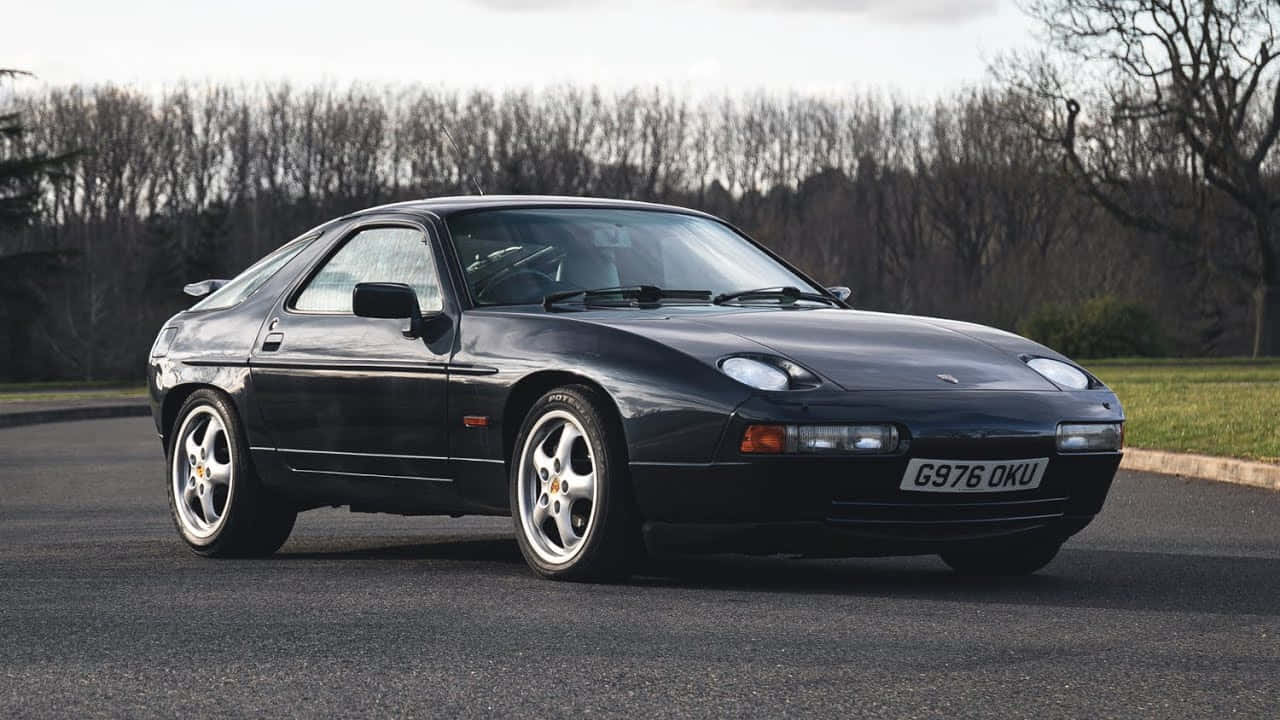

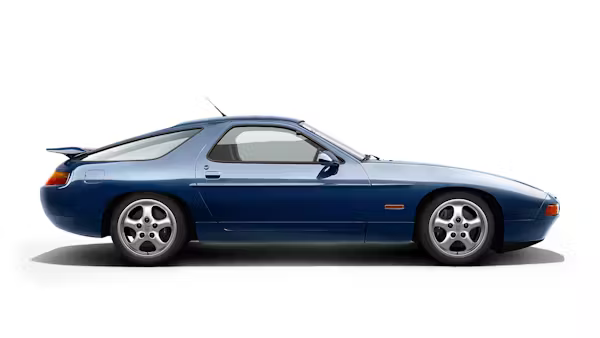

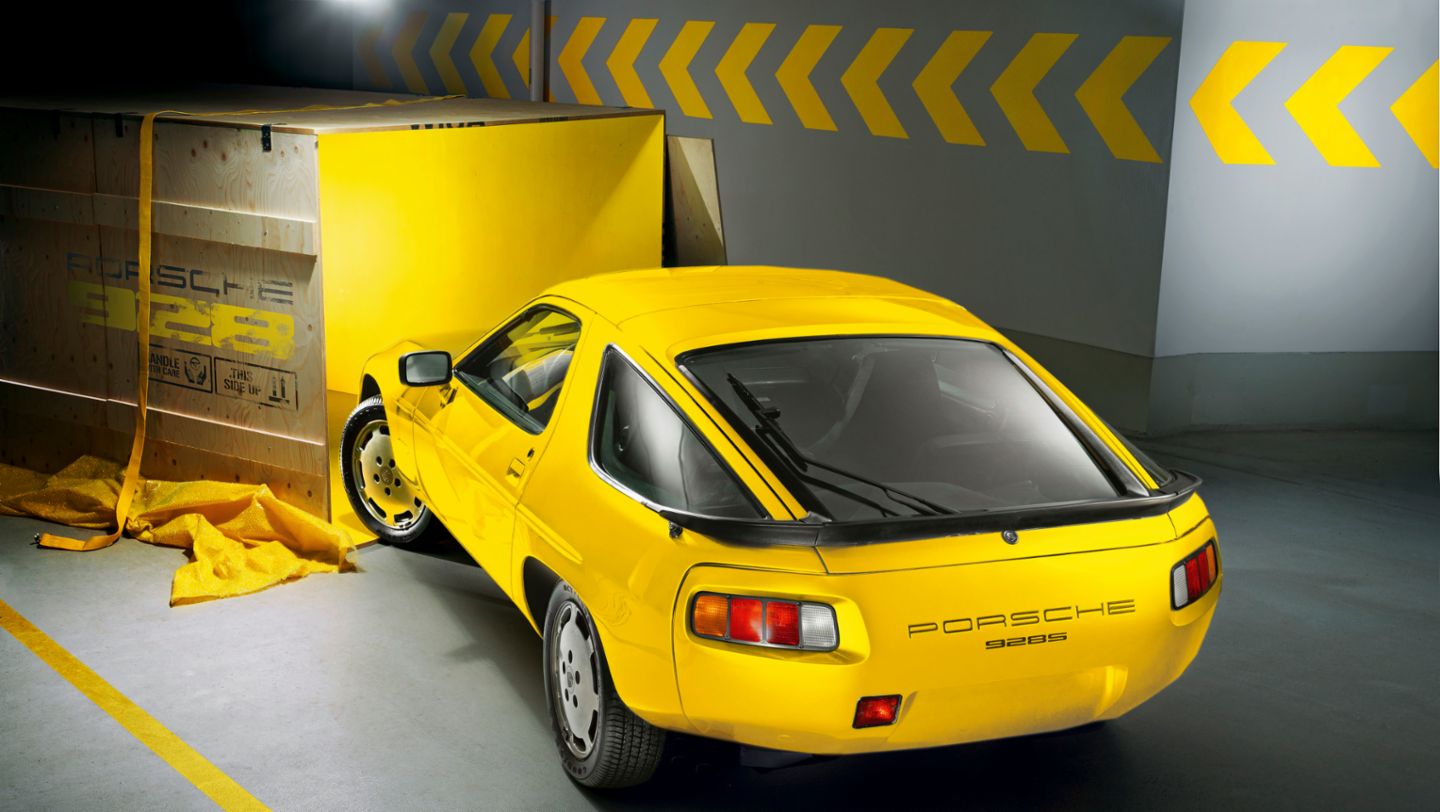

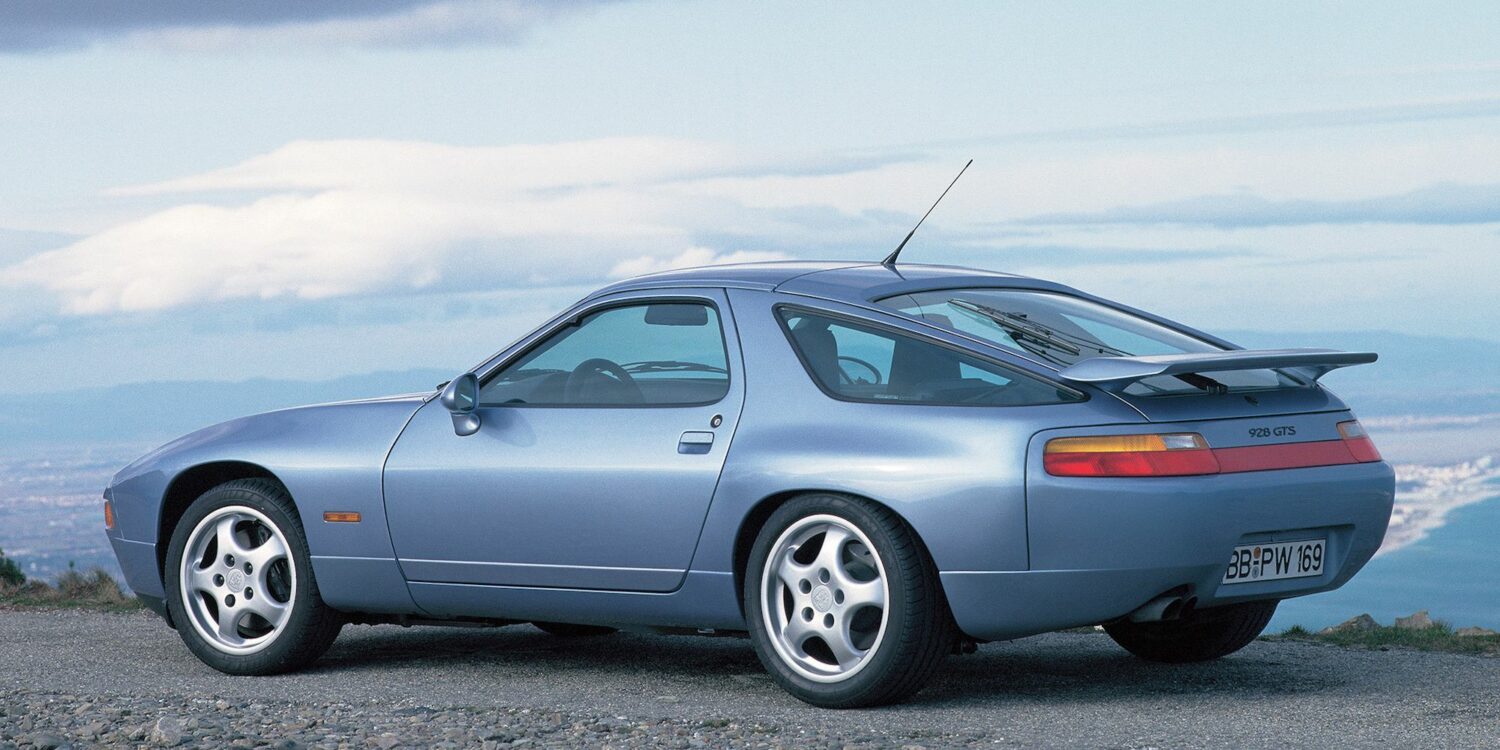

The Porsche 928
The Porsche 928 was the company’s first production car with a V-8 engine and the only coupe powered by a front-mounted V-8 as of today. Developed in the 1970s as a replacement of the 911, the 928 was eventually sold alongside the rear-engine sports car. Production lasted from 1977 until 1995. Porsche’s only luxury grand tourer up to date, the 928 was sold in various configurations. In addition to the base model, Porsche offered an S variant and later on changed the badge to the 928 S4. Club Sport (CS) and GT versions followed while the final four model years saw the 928 sold as a GTS only. While it wasn’t as popular as the 911, the 928 developed a following, and it’s now considered a classic. Design-wise, the 928 stayed largely untouched stylistically. The biggest changes were improvements made to the power- and drivetrains, tweaks to the suspension, rearrangement of options and packaging, and mostly cosmetic adjustments aside from minor body additions to improve aerodynamics. It had a great 18 years life, but we are pretty happy that in the end, the 928 never achieved its original goal of replacing the Porsche 911.

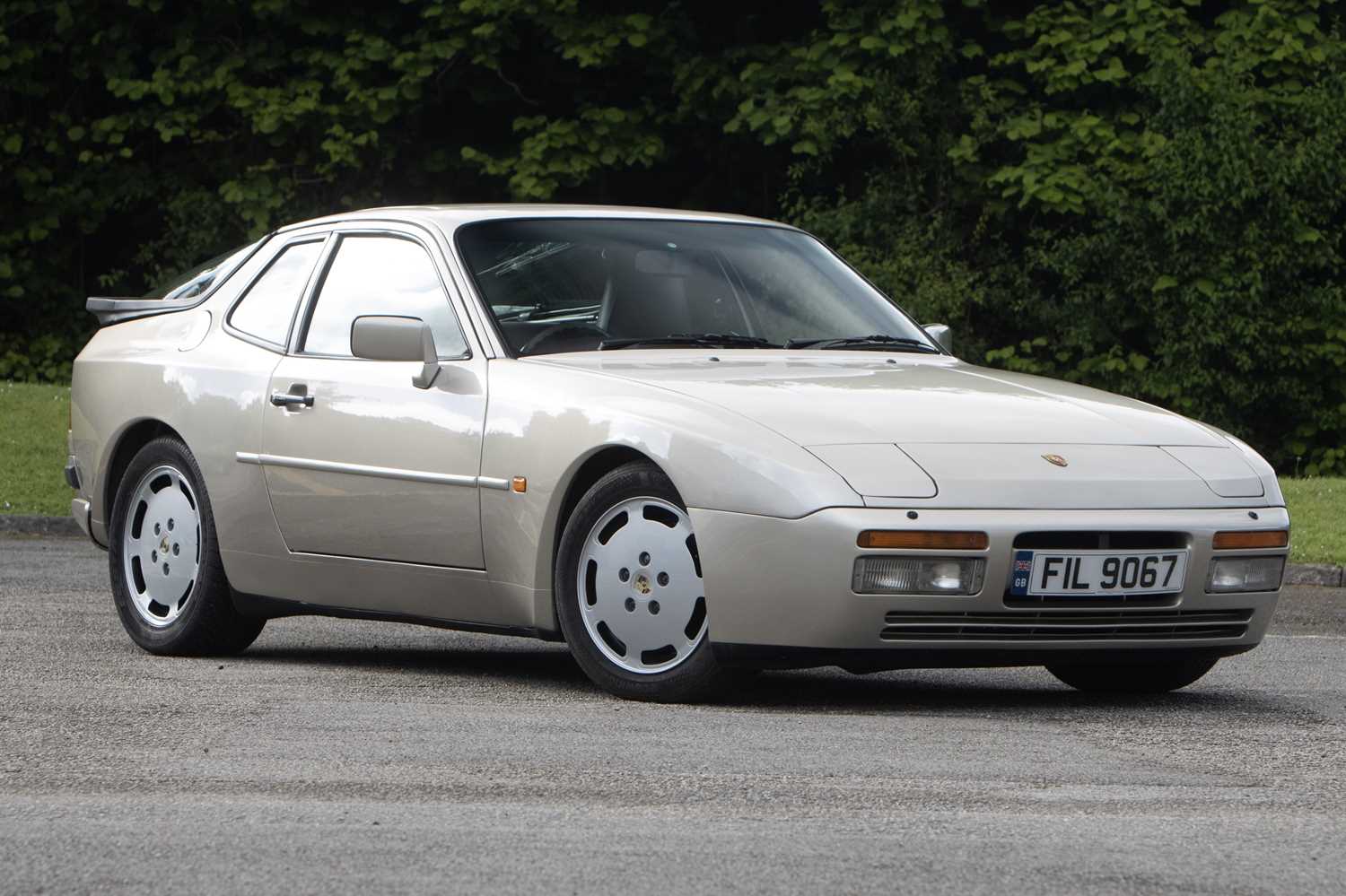

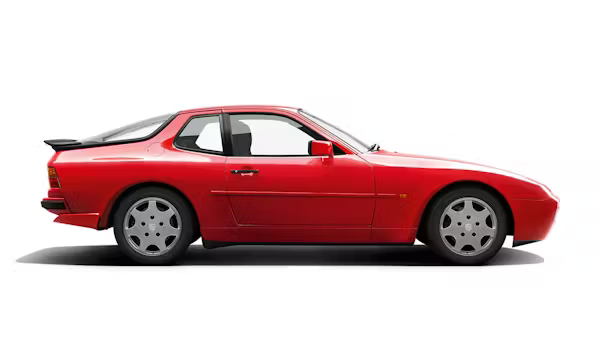

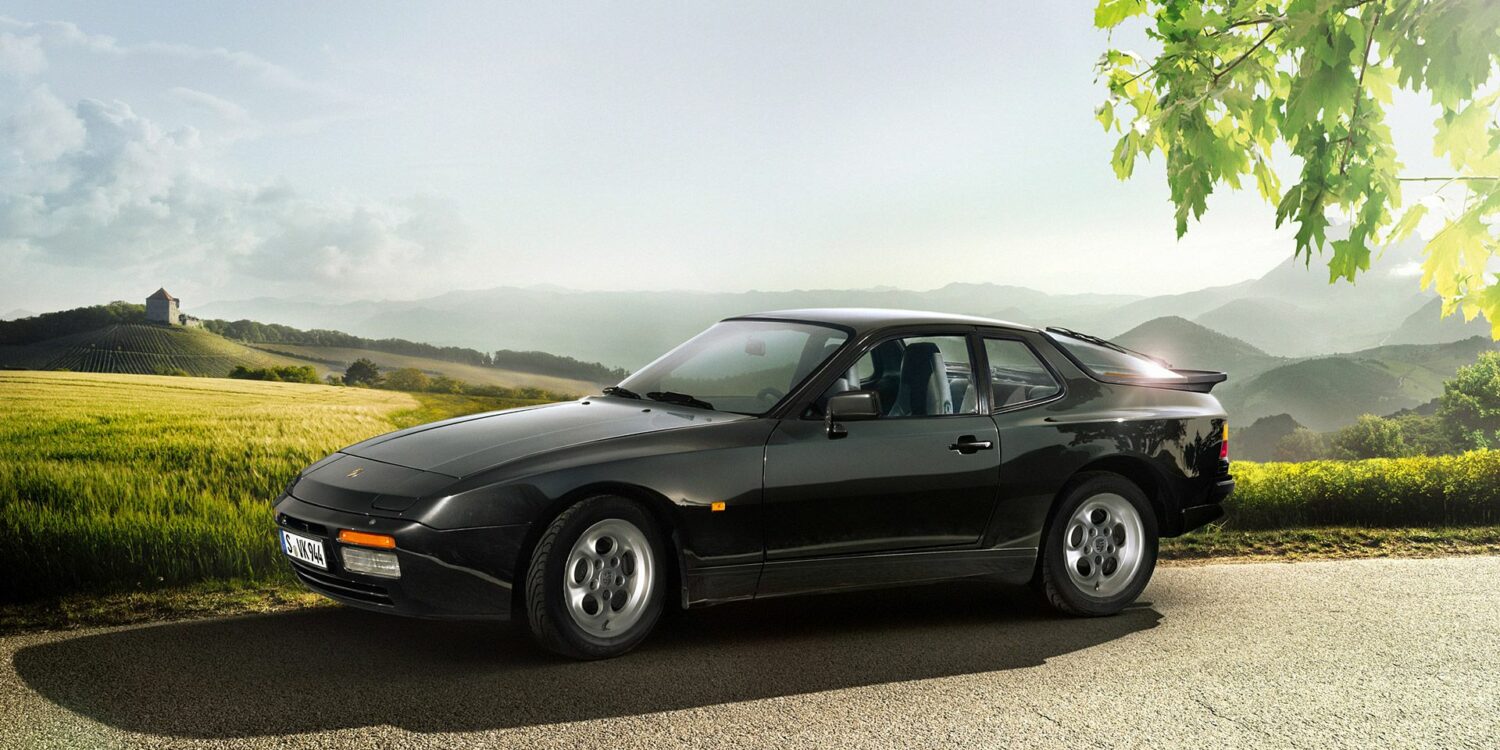

The Porsche 944
The car was the brainchild of the newly appointed Peter Schutz, the CEO of the Porsche company. He decided to debut the new 944, which was the replacement for the 924, at the 24 Hours Le Mans race of 1981. The project was greenlighted in 1980, in response to dropping sales of the Porsche 924. Although it was basically a 924 with a proper Porsche engine, body styling and trim, the 944 looked like a more grown up car than the 924. Improvements over the out-going 924 were plain to see - beginning with the flared front and rear wheel arches. These became the trademark of the 944, and pulled in the buyers due to the butch stance and powerful presence they gave the car. Other differences were small but significant - on US models, the ugly 924 side reflectors were replaced with smooth, bumper-line examples. A rear spoiler, lining the lift-glass, made the rear-end look more functional and sporty. Drag coefficient was reduced to 0.35 over the 924, and the body panels were zinc-coated in all markets to prevent corrosion.
This Porsche 944 was fitted with the new 2.5 liter four cylinder engine derived from Porsche's V8. There were however many changes made in the transition from half V8 to new inline 4 cylinder. The four cylinder engine had been fitted with dual counter-rotating balance shafts after the original 1904 design by British engineer Frederick Lanchester and improved upon by Japanese car maker Mitsubishi. The 944 engine got improvements over the years, including turbocharging being added to get even more power from the unit for the 944 Turbo models.
The Porsche 944 was Porsche's largest-selling front-engined coupe.The launch of the 944 traded heavily upon the new car being a 'brand new Porsche model', in an attempt to bury the image of all front-engined Porsches not being 'real' Porsches - a fate which had befallen the 924. The car was released for sale to European markets in November 1981, with the UK getting their quota in April 1982, and the USA in May 1982. Sales of the base 944 coupe went through the roof, with a massive 26,800 944s being produced by the end of 1982. To put this figure into context, the entire Porsche company made just 28,000 cars in total in 1981. Before the Boxster and Macan, the 944 was heralded as the savior of Porsche - the massive cash reserves that this model made during the 1980s kept the company afloat (just) during the world recession of the early 1990s.
Several updates and models were released over the life of the 944 and while the 944 was intended to last into the 1990s, this plan didn't not happen. Major revisions planned for a 944 S3 model were eventually rolled into the Porsche 968 instead, which replaced the 944. The Porsche 944 was a successful model and was available as both a coupe and cabriolet in naturally aspirated and turbocharged forms. Even today, it is considered the best handling RWD (rear wheel drive) car of all time and if you can get your hands on one you won't be disappointed.

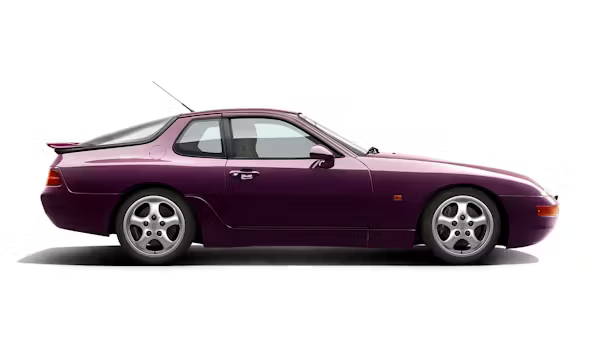

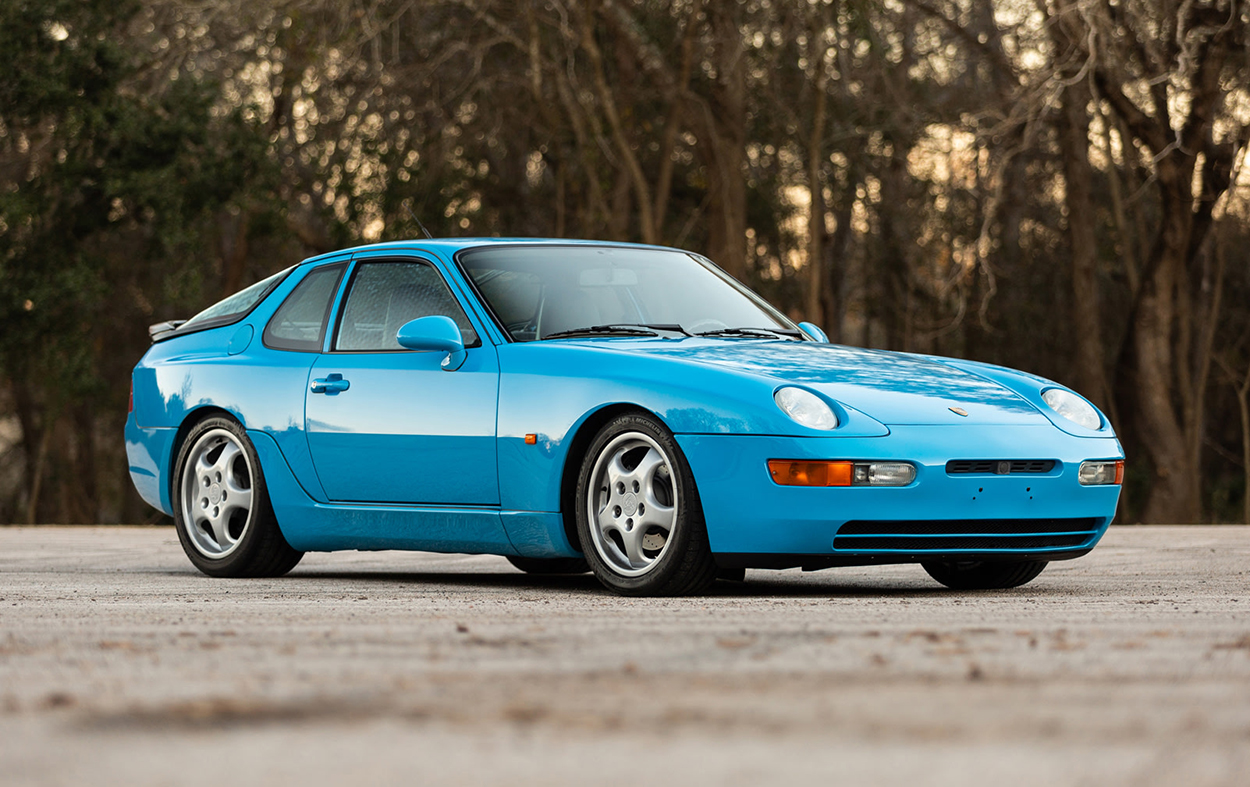

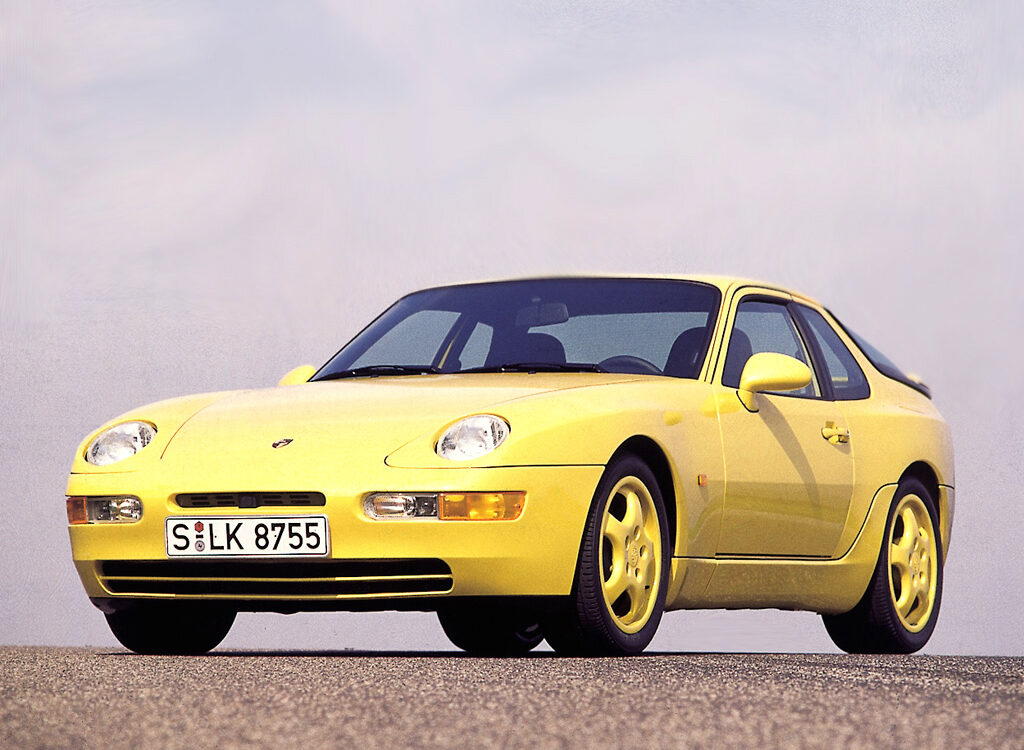

The Porsche 968
The 968 was almost called the 944 "S3", an upgrade to the "968 S2" that Porsche had introduced in 1989. With over 80% of the 944's components new or modified, Porsche decided instead to introduce the car as a new model, hence the 968 was born. Production was moved from the Audi plant in Neckarsulm (where the Porsche 924 and Porsche 944 had been made) to Porsche's own factory in Zuffenhausen. The 968 was produced from 1992 to 1995 and was marketed as the replacement for the Porsche 944. When production ceased in the 1995 model year, it represented the end of a line started almost 20 years earlier with the introduction of the Porsche 924. By late 1991, the 968 was ready. It retained all the good bits of its predecessor, while significantly improving appearance, handling, and performance. The 968 was introduced in September 1991 at the Frankfurt Motor Show as a 1992 model.
The big news new model was the engine. The 968 got an updated version of the 944’s straight-4 engine, now displacing 3.0 L and producing 236 bhp @ 6200 rpm and 225 lb-ft @ 4100 rpm of torque. Changes to the 968's powertrain also included the VarioCam variable valve timing system, a new dual resonant induction, a new exhaust systems with a rare metals catalytic converter, a dual-mass flywheel, and updated engine management electronics. A new 6-speed manual transmission was offered, as well as a dual-mode Tiptronic automatic. The options were plentiful, the most interesting of which was the M030 suspension.
The 968's styling somewhat resembled the 928 although it looks considerably more like a blend of the 993 911, which did not appear until the end of the 968's production and a 944 S2. Like the 944, the 968 was sold as both a coupe and a convertible. Much of the 968's chassis was carried over from the 944S2, which in itself shared many components with the 944 Turbo (internally numbered 951). Borrowed components include the Brembo-sourced 4-piston brake calipers on all four wheels, aluminum semi-trailing arms and aluminum front A-arms, used in a MacPherson strut arrangement. The galvanized steel Unibody structure was also very similar to that of the previous models.
Performance models were also released. A street-legal race variant, dubbed Club Sport, appeared in 1994 with a stripped-out interior including racing seats, revised suspension, and larger wheels and tires, but was offered only in Europe. A UK-only version called 968 Sport, a Club Sport model with some comfort features added back in, was produced in 1994 and 1995. Porsche briefly produced a turbocharged version called Turbo S, of which only 15 were produced, and again was only sold in Europe. The 968 Turbo S was capable of 0–60 mph in 4.5 s and top speed of 175 mph. A race variant called 968 Turbo RS was added as well; only 4 were produced and raced with some success.
Over the 4 years of production, only 12,780 cars were sold worldwide, with less than 5,000 shipped to North America. Original sales price started at about $55,000 and dropped dramatically by the end of production, as lower priced Japanese competition, and the unwillingness of the public to embrace a front engine 4 cylinder Porsche spelled doom for the 968. The 968 was Porsche’s last new front-engined vehicle before the introduction of the Cayenne SUV in 2003. It was sold alongside the 928 GTS through 1995 when both models were dropped.
