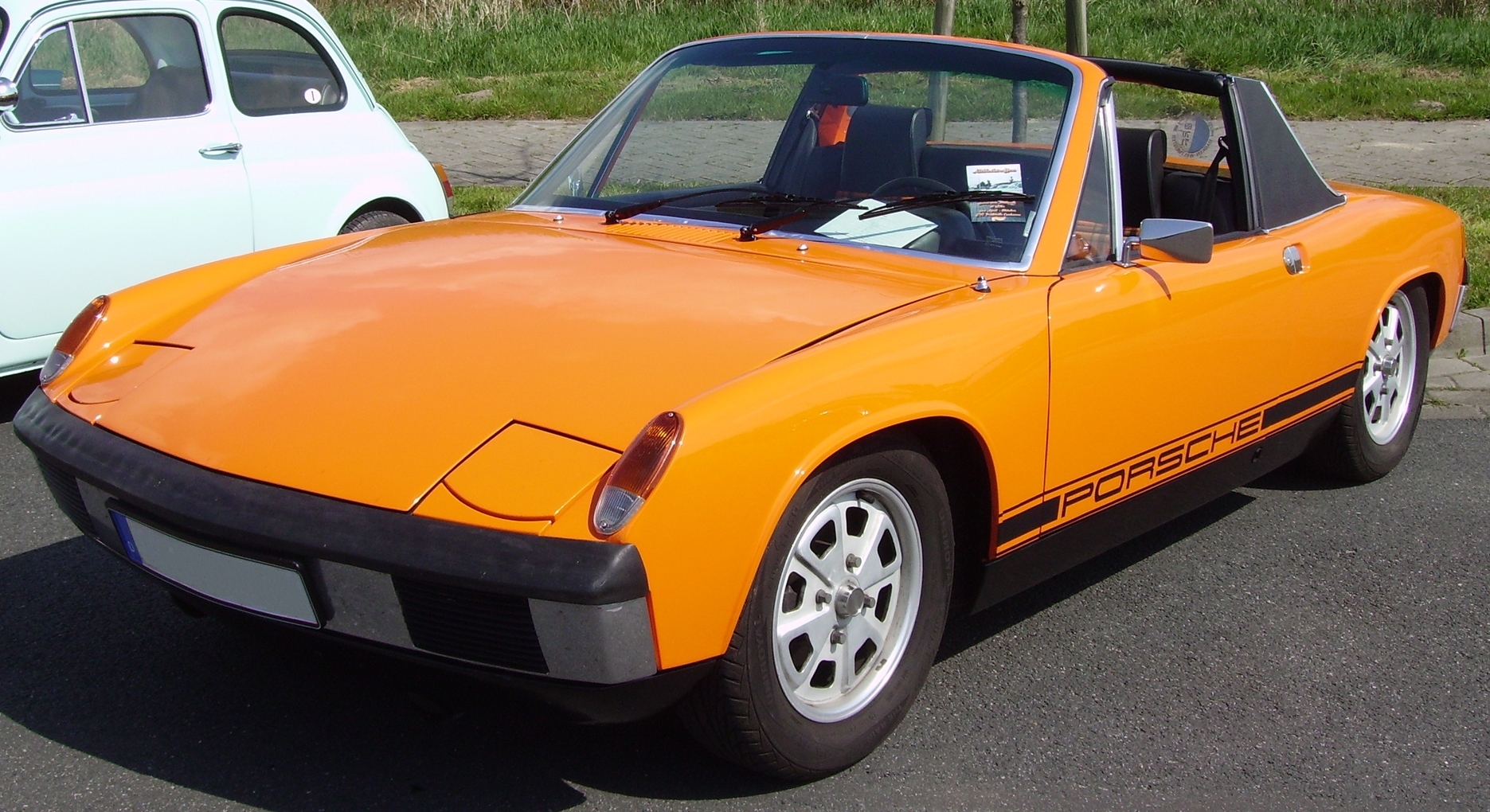

Porsche 914 – Torque Specifications

Porsche 914 Torque Specifications

Porsche 914 Torque Specifications

Engine

Description lb f ft. kg f m
Oil Drain Plug 16 2.2
Retaining nut for oil screen cover 9.4 1.3
Nuts for rocker arm shaft 10 1.4
Cylinder head nuts 23 3.2
Engine support bolts(crankcase) 21.7 3
Bolt for blower impeller hub 23 3.2
Flywheel bolts 80 11
Bolts & nuts for crankcase halves 14.5 2
Nuts for crankcase halves (with O-ring on outside) 24 3.3
Connecting rod nuts (new nuts, lubricated threads) 24 3.3
Transmission support nuts 14.5 2
Engine support nuts (body) 21.7 3
Nuts securing engine to transmission 21.7 3
Nuts for small V-belt pulley 43.4 6
Cooling blower impeller bolts 14.5 2
Heat Exchanger to Head Securing Nuts 13 – 15 1.8 – 2.1

Transmission

Transmission housing cover stud nuts 16 – 18 2.2 – 2.5
Fork piece on housing 15 – 17 2.1 – 2.3
Throwout bearing guide tube 7 0.8 – 0.9
Oil filler plug 15 – 18 2.0 – 2.5
Drain plug 15 – 18 2.0 – 2.5
Bearing throwout fork 15 – 17 2.1 – 2.3
Breather 15 – 22 2 – 3
Backup (reverse) light switch 25 – 29 3.5 – 4.0
Throwout fork holding plate 6 – 7 0.8 – 0.9
Starter nuts 33 – 35 4.6 – 4.8
Intermediate plate clamping plate 15 – 17 2.1 – 2.3
Intermediate plate guide lever bolt 15 – 17 2.1 – 2.3
Gearshift lock plug 16 – 18 2.2 – 2.4
Speedometer drive 12 – 13 1.6 – 1.8
Guide bushing miter drive hollow screw 16 – 18 2.2 – 2.4
Driveshaft nut 72 – 86 10 – 12
Driveshaft castellated nut 65 – 80 9 – 11
Pinion shaft expansion gear 80 – 87 11 – 12
Shift fork screws 18 – 19 2.4 – 2.6
Differential housing ring gear 72 – 86 10 – 12
Drive flange expansion bolt 25 – 29 3.5 – 4.0
Rear cover shift rod bearings 15 – 17 2.1 – 2.3
Rear transmission cover plate nut 6 – 7 0.8 – 0.
