Porsche 904 Carrera GTS – Specifications & Performance

Technical Specifications

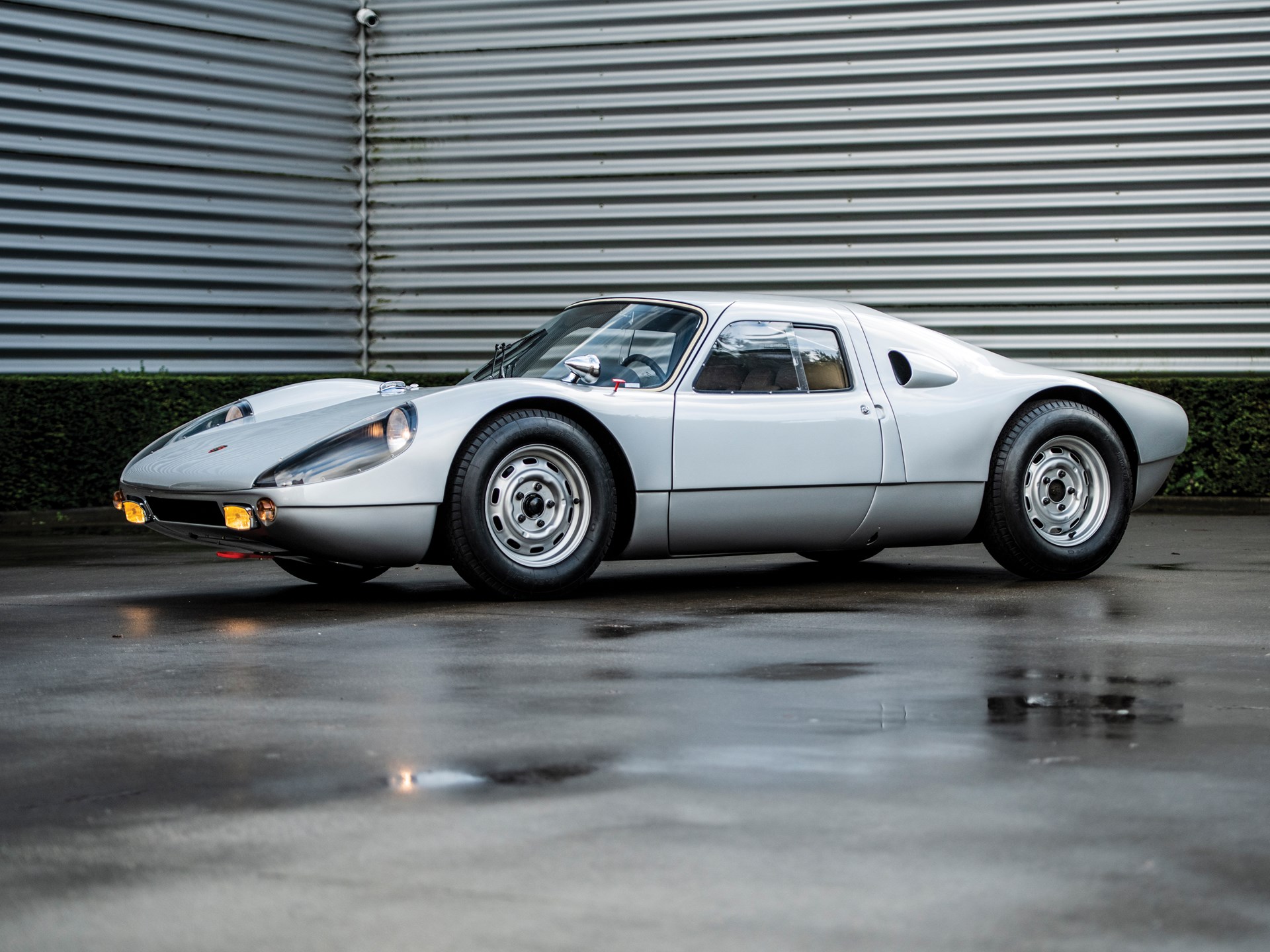

© RM Sotheby's

Porsche 904 Carrera GTS Specifications

production 106
price $ $7,425 USD
engine
Air Cooled, Type 587/3, All Aluminum, Flat 4 w/Dry Sump
position Mid Longitudinal
aspiration Natural
valvetrain
DOHC 2 Valves per Cyl
fuel feed
Twin Dual Throat Downdraft Webber 46 IDM2 Carburettors
displacement
1966 cc / 120.0 in³
bore 92 mm / 3.62 in
stroke 74 mm / 2.91 in
compression 9.8:1
power
134.2 kw / 180 bhp @ 7200 rpm
specific output
91.56 bhp per litre
bhp/weight
281.25 bhp per tonne
torque
195.92 nm / 144.5 ft lbs @ 5000 rpm
body / frame
Fibreglass over Box Section Steel Frame
driven wheels RWD w/LSD
front tires 550-15
rear tires 600-15
front brakes Discs
rear brakes Discs
front wheels
F 38.1 x 15.2 cm / 15 x 6 in
rear wheels
R 38.1 x 15.2 cm / 15 x 6 in
steering Rack & Pinion
f suspension
Wishbones w/Coil-over Telescopic Dampers
r suspension
Twin Diagonal Arms w/Longitudinal Struts, Coil-over Telescopic Dampers
curb weight
640 kg / 1410 lbs
wheelbase
2300 mm / 90.6 in
front track
1314 mm / 51.73 in
rear track
1312 mm / 51.65 in
length
4090 mm / 161.02 in
width
1540 mm / 60.62 in
height
1065 mm / 41.93 in
transmission 5-Speed Manual
gear ratios
2.643:1, 1.550:1, 1.217:1, 1.040:1, 0.889:1
top speed
~262.3 kph / 163.0 mph
0 – 60 mph ~6.4 seconds
0 – 100 mph ~14.0 seconds
