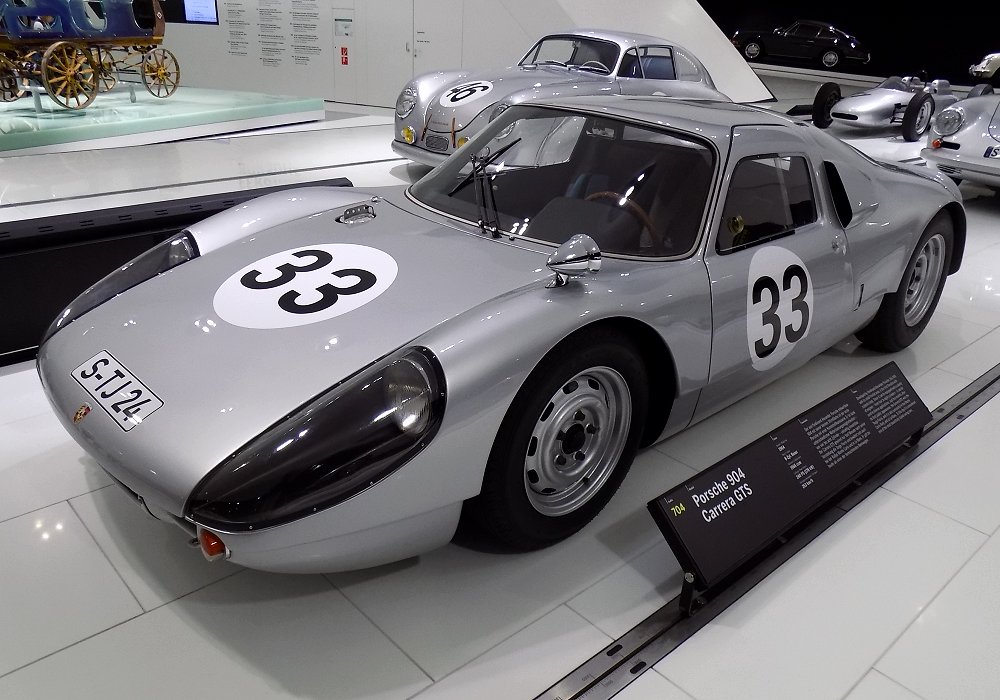

Porsche 904/8 Carrera GTS – Specifications & Performance

Technical Specifications

Porsche 904/8 Carrera GTS Specifications

Engine Type 771 B8
Engine Location Mid, longitudinally mounted
Engine Construction aluminium block and head
Displacement 1,981 cc / 120.9 cu in
Valvetrain 2 valves / cylinder, DOHC
Fuel feed 4 Carburettors
Lubrication Dry sump
Aspiration Naturally Aspirated
Power 240 bhp (178 kW) at 8700 rpm
BHP/Liter 121 bhp / liter
Body fibreglass
Chassis steel sheet box-section ladder frame
Front suspension double wishbones, coil springs over dampers, anti-roll bar
Rear suspension reversed double wishbones, twin trailing arms, coil springs over dampers, anti-roll bar
Steering rack-and-pinion, electro-hydraulic power assistance
Brakes (fr/r) Porsche-ATE discs
Gearbox 5 speed Manual
Clutch Single, dry plate
Drive Rear wheel drive
Wheelbase / Track (fr/r) 2,300 mm (90.6 in) / 1,314 mm (51.7 in) / 1,312 mm (51.7 in)
Power to weight 0.43 bhp / kg
Top Speed 161 mph
