Porsche 935/77 – Specifications & Performance

Technical Specifications

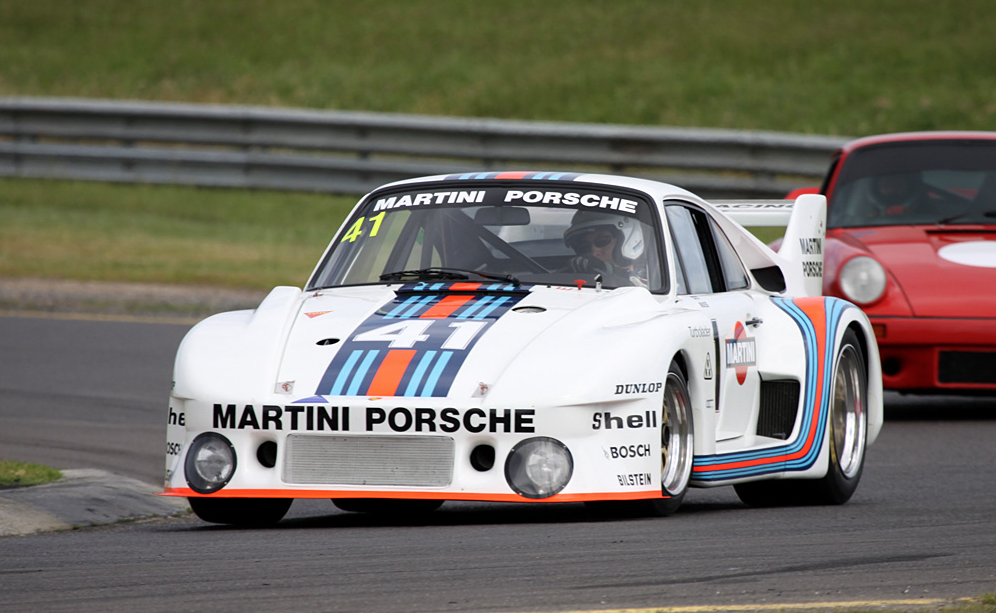

Porsche 935/77

Porsche 935/77 Specifications

This is the spec sheet for the Porsche 935/77. Note there was also a 1.4 Liter “Baby” Porsche 935 and those specs can be found here.

type Racing Car
built at Weissach, Germany
engineers Norbert Singer
engine Type 935/71 Boxer-6
position Rear, Longitudinal
aspiration Twin KKK Turbochargers
block material Aluminum
valvetrain 4 Valves per Cyl
fuel feed Bosch Fuel Injection
displacement 3211 cc / 195.95 in³
bore 95.8 mm / 3.8 in
stroke 74.4 mm / 2.9 in
compression 7.0:1
power 630.1 kw / 845 bhp @ 8200 rpm
specific output 263.16 bhp per litre
bhp/weight 824.39 bhp per tonne
torque 784 nm / 578.2 ft lbs @ 6600 rpm
body / frame Steel Monocoque with Fibreglass Panels, Aluminum Subframes
front brakes Ventilated & Cross-Drilled Discs
rear brakes Ventilated & Cross-Drilled Discs
steering Rack & Pinion
f suspension McPherson Struts
r suspension Semi-Trailing Arms
curb weight 1025 kg / 2260 lbs
wheelbase 2279 mm / 89.7 in
front track 1624 mm / 63.9 in
rear track 1624 mm / 63.9 in
length 4890 mm / 192.5 in
width 1990 mm / 78.3 in
height 1200 mm / 47.2 in
transmission Type 930/50 4-Speed Manual
top speed ~366 kph / 227.29 mph
0 – 60 mph ~2.6 seconds
