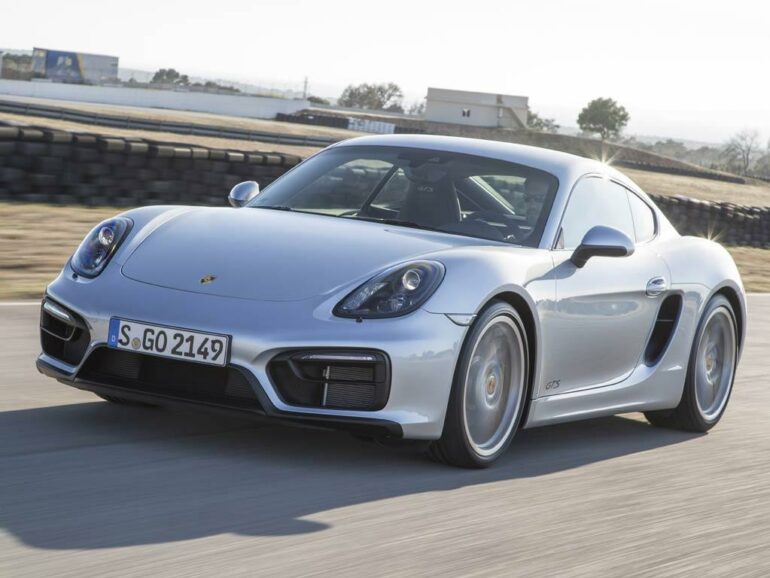

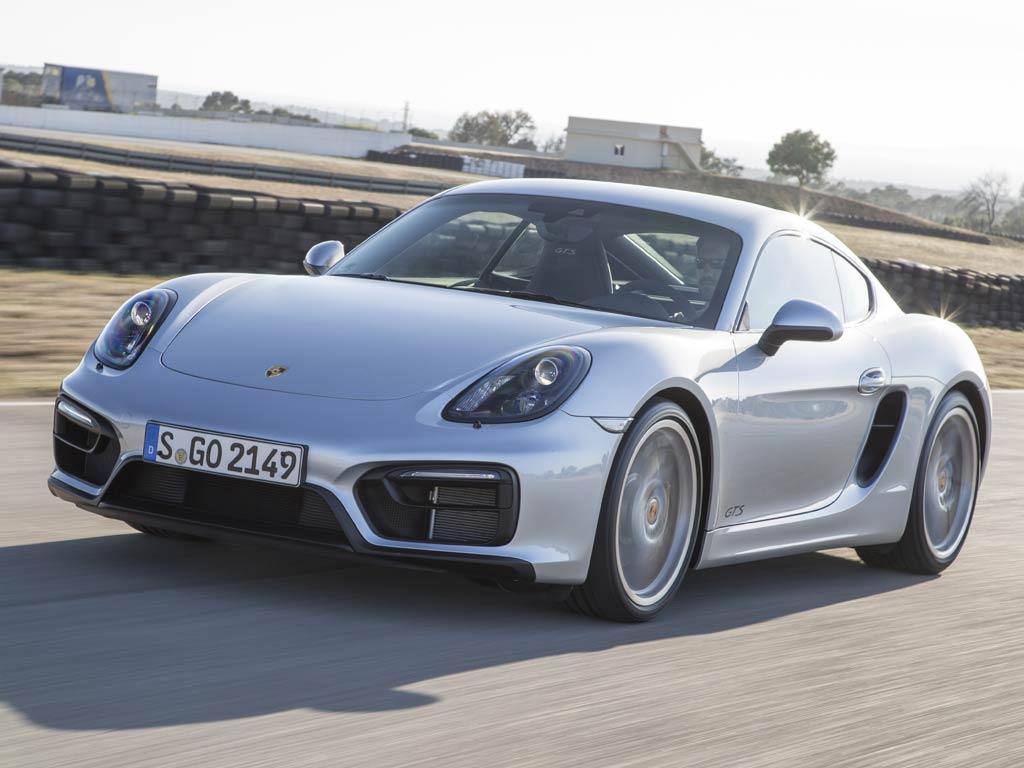

Porsche Cayman GTS (2014) – Specifications & Performance

Porsche Cayman GTS (2014) – Specifications

2014 Porsche Cayman GTS Technical Specifications

Built At Stuttgart, Germany
Engine Flat-6
Position Mid, Longitudinal
Aspiration Natural
Block Material Aluminum
Valvetrain
DOHC, 4 Valves per Cyl w/VVT & VarioCam Plus
Fuel Feed Direct Fuel Injection
Displacement 3436 cc / 209.68 in³
Bore 97 mm / 3.8 in
Stroke 77.5 mm / 3.1 in
Compression 12.5:1
Power 330 bhp @ 6700 rpm
Torque 272 ft lbs @ 4500 rpm
Specific Output 98.95 bhp per litre
Bhp/weight 257.58 bhp per tonne
Redline 7800
Body / Frame
Unitary Steel & Aluminum Monocoque w/Aluminum Hood
Driven Wheels RWD
Wheel Type 20-inch Carrera S-wheels
Front Tires 235/35-20
Rear Tires 265/35-20
Front Brakes
Ventilated Discs w/4-Piston Aluminum Monobloc Calipers
F Brake Size 28 x 330 mm / 1.1 x 13.0 in
Rear Brakes
Ventilated Discs w/4-Piston Aluminum Monobloc Calipers
R Brake Size 20 x 299 mm / 0.8 x 11.8 in
F Suspension
MacPherson Struts w/Gas-Pressure Dampers, Anti-Roll Bar
R Suspension
Transverse Control Arms w/Coil Springs over Gas-Pressure Dampers, Anti-Roll Bar
Curb Weight 1320 kg / 2911 lbs
Wheelbase 2475 mm / 97.4 in
Front Track 1526 mm / 60.1 in
Rear Track 1540 mm / 60.6 in
Length 4374 mm / 172.2 in
Width 1801 mm / 70.9 in
Height 1281 mm / 50.4 in
Transmission
6-Speed Manual or 7-Speed PDK Automatic
Tran Clutch 240mm
Gear Ratios
3.31:1, 1.95:1, 1.41:1, 1.13:1, 0.95:1, 0.81:1
Final Drive 3.89:1
0 – 60 mph 4.1 seconds
Top Speed 174.5 mph
Quarter Mike 12.50 seconds
