Porsche 934 – Specifications & Performance

Technical Specifications

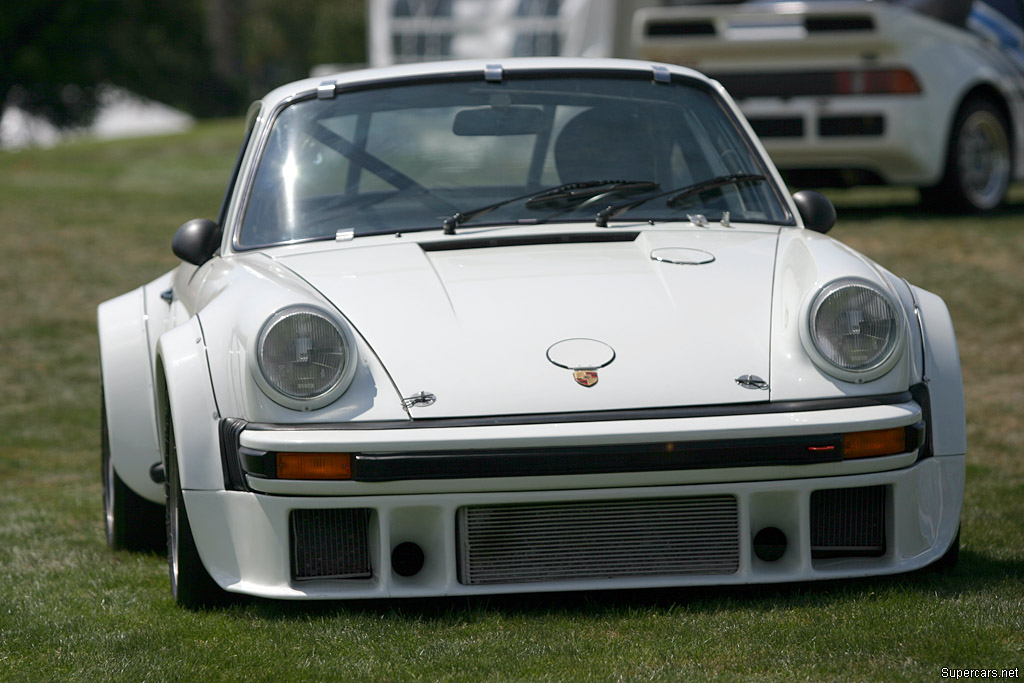

Porsche 934

Porsche 934 Specifications

Engine Flat-six engine
Position Rear, Longitudinal
Aspiration KKK Turbocharger
Valvetrain SOHC
Fuel Feed K-Jetronic Mechanical Injection
Displacement 2993cc / 182.64 in³
Compression 10.3:1
Power 485 bhp @ 7000 rpm
Specific Output 162.04 bhp per litre
Torque 434 ft lbs @ 5400 rpm
Redline 8500 rpm
Body/Frame Unit Steel with some fiberglass
Driven Wheels Rear Engine / RWD
Wheel Type BBS Center-Lock
Front Brakes F 40.6 x 26.7 cm / 16 x 10.5 in
Rear Brakes R 40.6 x 31.8 cm / 16 x 12.5 in
Steering Rack and pinion
Wheel Base 2271 mm / 89.4 in
Front Track 1402 mm / 55.2 in
Rear Track 1422 mm / 56.0 in
Length 4128 mm / 162.5 in
Width 1651 mm / 65.0 in
Height 1321 mm / 52.0 in
Transmission 5-Speed Manual
Tran Clutch Single Plate
Gear Ratios
3.18:1, 1.83:1, 1.26:1, 0.925:1, 0.724:1
Final Drive 4.43:1
Top Speed ~286.5 km/h / 178.0 mph
0 – 60 mph ~5.6 seconds
0 – 100 mph ~12.0 seconds
0 – 1/4 mile ~13.2 seconds
Fuel Capacity 120 litres or 31.68 gal.
