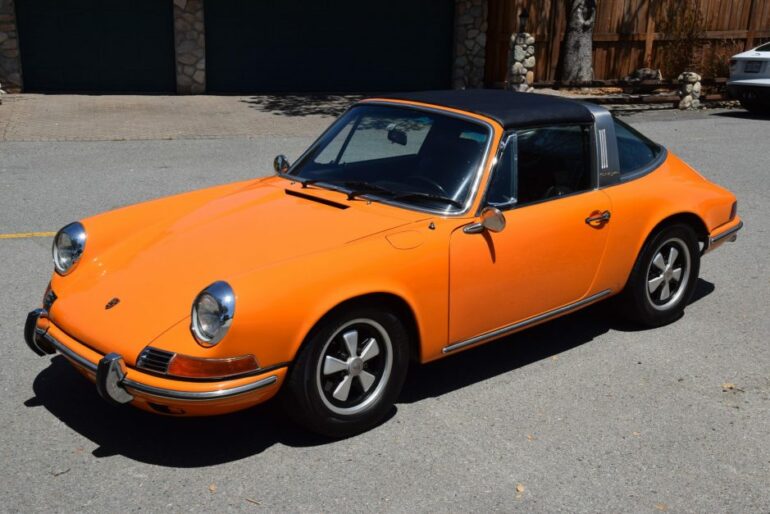

Porsche 911 T Targa 2.2 (1970 – 1971) – Specifications & Performance

1970 – 1971 Porsche 911 T Targa 2.2 (LWB) Technical Specifications

Induction
Normally-aspirated
Cooling Air/oil-cooled
Valvetrain
Single overhead camshaft
Injection Carburetion
Bore X Stroke 3.31 in/84 mm x 2.60 in/66 mm
Displacement 133.90 cu-in/2,195 cc
Horsepower 125 bhp @ 5800 rpm
Torque 131 ft lbs @ 4200 rpm
Max Rpm 6500
Compression Ratio 8.6:1
Transmission Options 4-speed manual, 5-speed manual, 4-speed Sportomatic
Chassis Type
Rear-engined, rear-wheel drive
Body / Frame Unitary Steel
Curb Weight 2,249 lbs.
Height
51.97 in/1,320 mm
Ground Clearance 5.91 in/150 mm
Length
163.90 in/4,163 mm
Wheelbase
89.29 in/2,268 mm
Width
63.39 in/1,610 mm
Track Front 53.62 in/1,362 mm
Track Rear 52.87 in/1,343 mm
Drag Coefficient 0.38
Wheel Size Front 15 x 5.5
Wheel Size Rear 15 x 5.5
Tire Size Front 165/70HR-15
Tire Size Rear 165/70HR-15
Caliper Front Fixed 2-piston
Caliper Rear Fixed 2-piston
Disc Type Front Ventilated discs
Disc Type Rear Ventilated discs
Disc Size Front 11.12 in/282.5 mm x 0.79 in/20 mm
Disc Size Rear 11.41 in/290 mm x 0.79 in/20 mm
0 To 60 Mph 9.5 seconds
Top Speed 127 mph manual/124 mph Sportomatic
