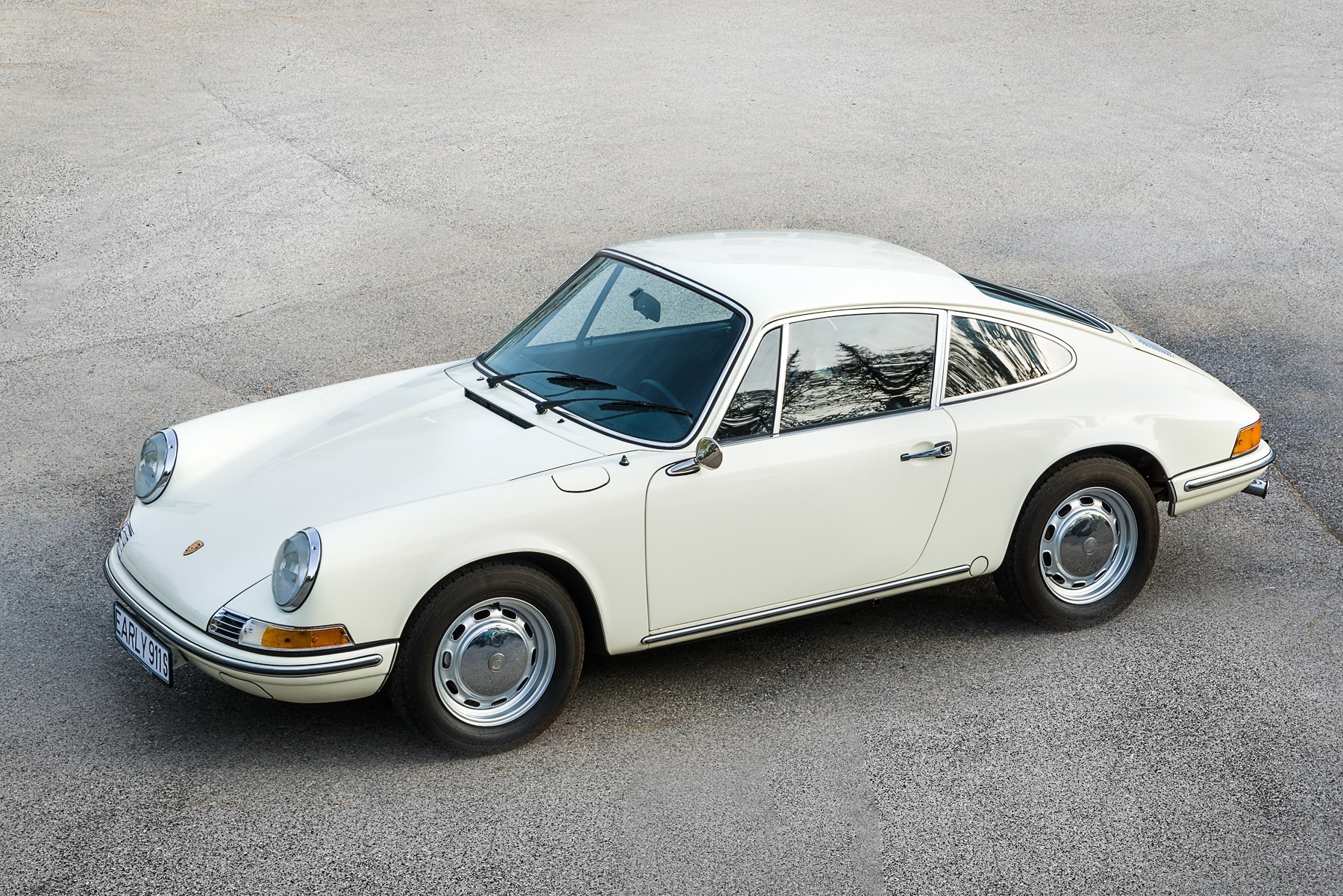

Porsche 911 T Coupe (1968 – 1969) – Specifications & Performance

1968 – 1969 Porsche 911 T Coupe 2.0 (SWB & LWB) Technical Specifications

Engine Type Flat 6
Induction
Normally-aspirated
Cooling Air/oil-cooled
Valvetrain
Single overhead camshaft
Injection Carburetor
Bore X Stroke
3.15 in/80 mm x 2.60 in/66 mm
Displacement
121.45 cu-in/1,991 cc
Horsepower
110 bhp @ 5800 rpm
Torque
116 lb-ft @ 4200 rpm
Max Rpm 6500
Compression Ratio 8.6:1
Transmission Options
4-speed manual, 5-speed manual, 4-speed Sportomatic
Chassis Type
Rear-engined, rear-wheel drive
Body / Frame Unitary Steel
Curb Weight 2,249 lbs.
Height
51.97 in/1,320 mm
Ground Clearance 5.91 in/150 mm
Length
163.90 in/4,163 mm
Wheelbase
89.29 in/2,268 mm
Width
63.39 in/1,610 mm
Track Front
53.62 in/1,362 mm
Track Rear
52.87 in/1,343 mm
Drag Coefficient 0.38
Wheel Size Front 15 x 5.5
Wheel Size Rear 15 x 5.5
Tire Size Front 165/70HR-15
Tire Size Rear 165/70HR-15
Caliper Front Fixed 2-piston
Caliper Rear Fixed 2-piston
Disc Type Front Solid discs
Disc Type Rear Solid discs
Disc Size Front
11.10 in/282 mm x 0.50 in/12.7 mm
Disc Size Rear
11.22 in/285 mm x 0.39 in/10 mm
0 To 60 Mph ~8.3 seconds
Top Speed
124 mph manual/121 mph Sportomatic
