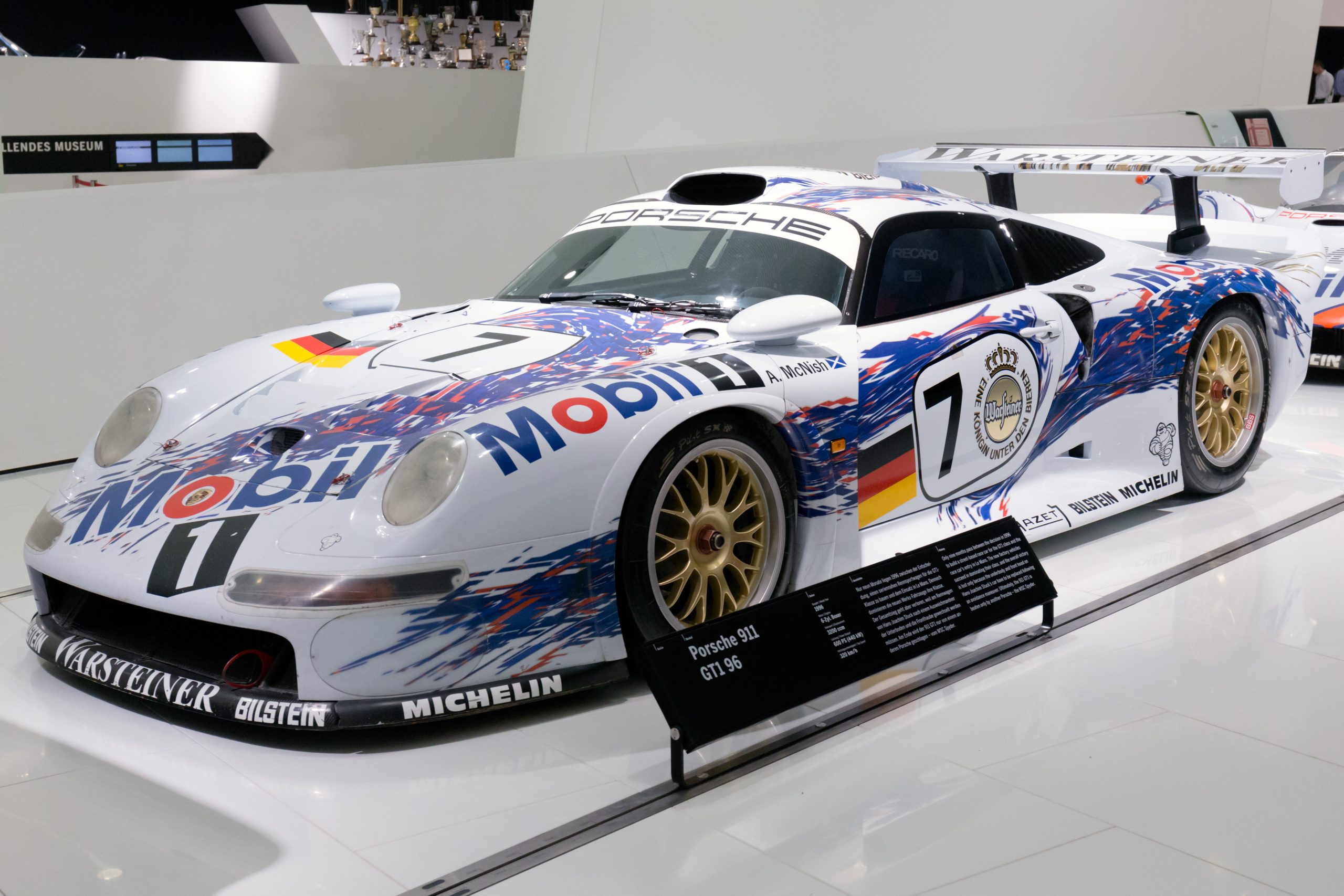

Porsche 911 GT1 (1996) – Specifications & Performance

Porsche 911 GT1 (1996) – Specifications & Performance

1996 Porsche 911 GT1 Technical Specifications

Technical specifications (as at 28 April 1996)

Engine:
6 cylinder boxer, aluminium-engine block and cylinder heads, water cooled block and head, 2 intake and 2 discharge valves per cylinder, 2 exhaust gas turbo chargers, rigid bucket tappet with valve play compensation, dry sump lubrication, electronic engine management (TAG 3.8)
Engine 6-cylinder boxer (M96/80)
Capacity 3200 cc
Bore x stroke 95 x 74.4 mm
Power output 600 bhp @ 7200 rpm
Torque 478 ft lbs @ 5500 rpm
Valves 4x valve per cylinder
Turbos 2x KKK K27.2 exhaust gas turbochargers
Restrictors 2x 35.7 mm
Intercoolers 2x charge-air intercoolers
Lubrication Dry sump
Engine management TAG 3.8
Fuel supply
Multipoint, sequential fuel injection with Lambda control
Gearbox 6-speed (G96/80)
Transmission Details
6-speed, fully synchronized gearbox, mid engine, rear wheel drive, single-disc sinter metal racing clutch, additional lubrication with oil pump and oil-to-water heat exchanger, locking differential
Chassis
Front section basis 993, adjustable plastic rear wing, air inlet to turbo chargers on the roof, rollcage as supporting chassis member, air jack, double wishbones front, double wishbones with pushrods rear, adjustable shock absorbers front and rear, power steering, anti roll bar front and rear
Clutch Single-disc sinter metal racing clutch
Differential Locking differential
Suspension Front Double wishbones
Suspension Rear Double wishbones with pushrods
Shock absorbers Adjustable front and rear
Anti-roll bar Adjustable front and rear
Steering Power steering
Wheels Front 11.5 x 18” ET49
Wheels Rear 13 x 18” ET66
Brakes
Carbon disc brakes front and rear, hydraulic servo unit
Discs Front & Rear 380 x 37 mm
Calipers Front 8 pistons (fixed)
Calipers Rear 4 pistons (fixed)
ABS Bosch ABS
Dimensions
Weight 1000 kg
Length 4683 mm
Width 1946 mm
Height 1173 mm
Fuel Tank 100-litre fuel tank with integrated catch tank
Power: 600 hp (440 kW) at 7.200 rpm
Displacement: 3.200 cc
Fuel system:
100 litre safety tank with integrated catchtank, rapid tank valves and reserve switch fuel injection (Multipoint, sequential)
0-60 mph
3.8 sec (Tested by Autocar & Auto Motor und Sport)
0-100 mph
7.1 sec (Tested by Autocar & Auto Motor und Sport)
Top Speed Approx. 199 mph
