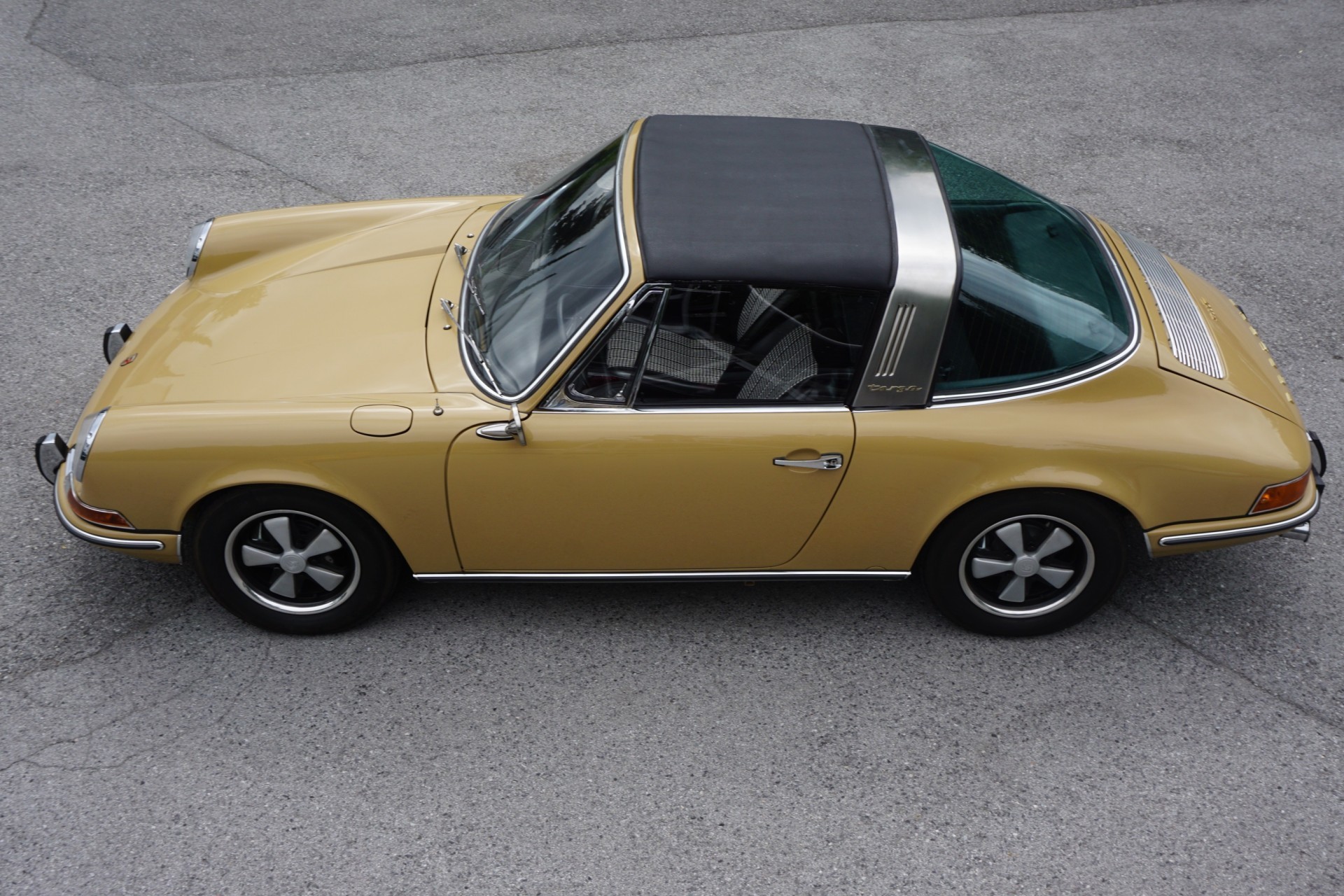

1969 Porsche 911 E Targa 2.0 (LWB) Technical Specifications
| Engine Type | Flat 6 |
| Induction |
Normally-aspirated
|
| Cooling | Air/oil-cooled |
| Valvetrain |
Single overhead camshaft
|
| Injection | Carburetor |
| Bore X Stroke |
3.15 in/80 mm x 2.60 in/66 mm
|
| Displacement |
121.45 cu-in/1,991 cc
|
| Horsepower |
140 bhp @ 6500 rpm
|
| Torque |
129 ft lbs @ 4500 rpm
|
| Max Rpm | 6500 |
| Compression Ratio | 9.1:1 |
| Transmission Options | 5-speed manual, 4-speed Sportomatic |
| Chassis Type |
Rear-engined, rear-wheel drive
|
| Body / Frame | Unitary Steel |
| Curb Weight | 2,249 lbs. |
| Height |
51.97 in/1,320 mm
|
| Ground Clearance | 5.91 in/150 mm |
| Length |
163.90 in/4,163 mm
|
| Wheelbase |
89.29 in/2,268 mm
|
| Width |
63.39 in/1,610 mm
|
| Track Front | 54.09 in/1,374 mm |
| Track Rear | 53.35 in/1,355 mm |
| Drag Coefficient | 0.38 |
| Wheel Size Front | 15 x 6 |
| Wheel Size Rear | 15 x 6 |
| Tire Size Front | 185/70VR-15 |
| Tire Size Rear | 185/70VR-15 |
| Caliper Front | Fixed 2-piston |
| Caliper Rear | Fixed 2-piston |
| Disc Type Front | Solid discs |
| Disc Type Rear | Solid discs |
| Disc Size Front | 11.10 in/282 mm x 0.79 in/20 mm |
| Disc Size Rear | 11.22 in/285 mm x 0.79 in/20 mm |
| 0 To 60 Mph | ~8.2 seconds |
| Top Speed |
134 mph manual
|
