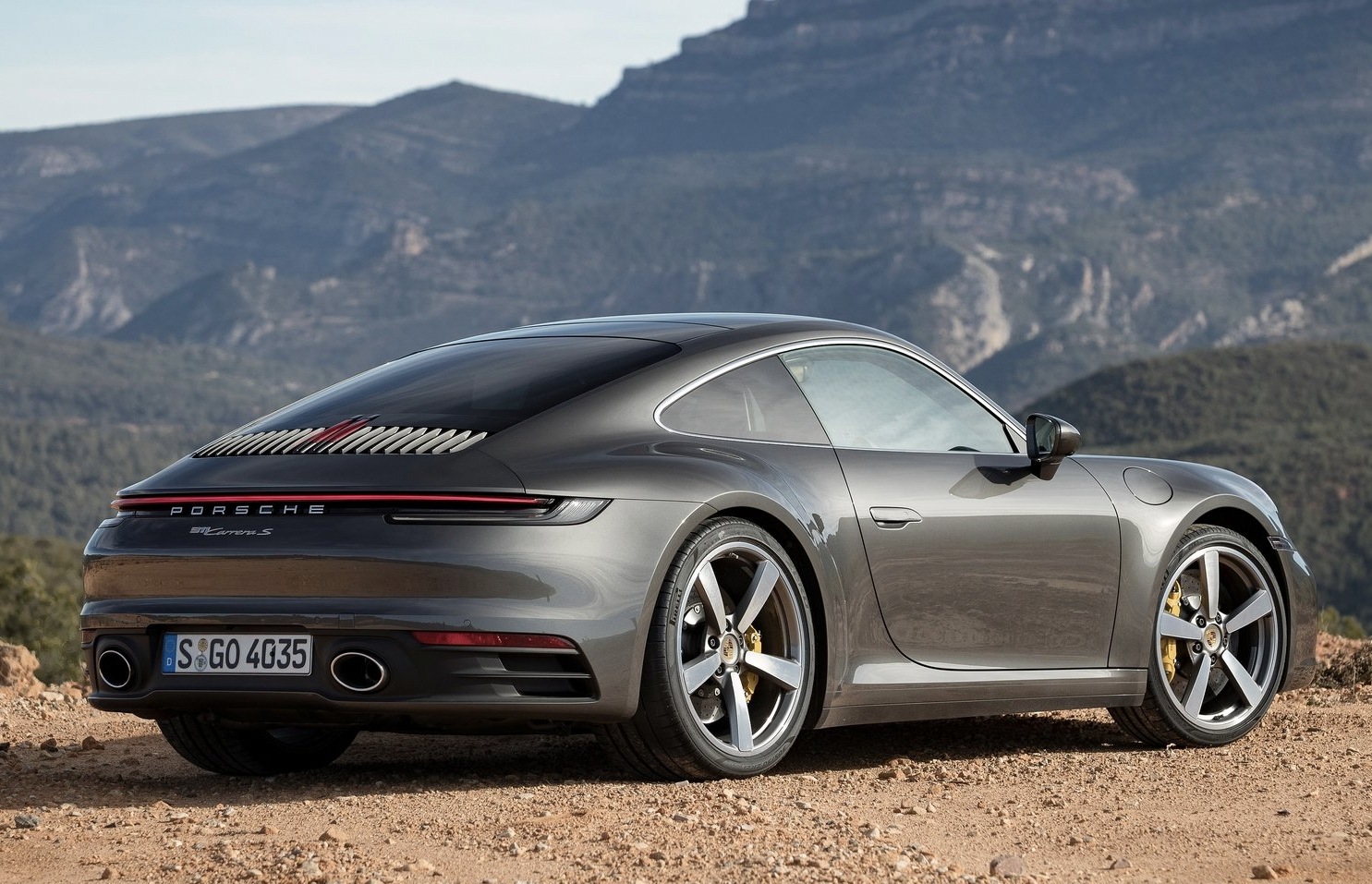

Porsche 911 Carrera S Coupe (992) (2023) – Specifications & Performance

2023 Porsche 911 Carrera S (992) Technical Specifications

PDK 992 Carrera S Specs

Model 992 911 Carrera S
Engine
Engine layout Rear Engine
Engine type Boxer, twin-turbo
Cylinders 6
Valves per cylinder 4
Construction Aluminum crankcase and heads
Fuel injection Direct Fuel Injection (DFI)
Fuel Premium
Displacement (Liters) 3.0 L
Bore/Stroke (mm/mm) 91.0 mm / 76.4 mm
Maximum power output @ engine speed 443 hp @ 6500 rpm
Maximum torque @ engine speed 390 lb.-ft. @ 2300-5000 rpm
Maximum engine speed 7500
Compression ratio (tolerance +/- 0.3) 10.2:1
Output per liter 148 hp
Lubrication Integrated dry-sump
Power to weight ratio (lb/hp) 7.7
Drivetrain Rear-wheel drive
Chassis & Suspension
Body Monocoque lightweight body in a combination of steel, aluminum, and magnesium
Front Axle MacPherson strut with anti-roll bar
Rear Axle Aluminum multi-link with anti- roll bar
Steering System Variable ratio electromec. power steering
Steering Ratio 15.0 : 1 (on-center) to 12.25 : 1
Steering Ratio with rear-axle steering 14.1 : 1 (on-center) to 12.25 : 1
Turning Circle 36.8 ft / 35.8 ft. (with rear axle steering)
Brakes & Wheels
Caliper type Aluminum monobloc fixed- caliper brake
Rotor material Steel
Caliper color Red
Number of pistons (front/rear) 6 / 4
Rotor diameter (front/rear) mm 350 mm / 350 mm
Rotor thickness (front/rear) mm 34 mm / 28 mm
Caliper type (optional PCCB system) Aluminum monobloc fixed- caliper brake
Rotor material (optional PCCB system) Carbon-ceramic composite
Caliper color (optional PCCB system) Yellow
Number of pistons (front/rear – optional PCCB system) 6 / 4
Rotor diameter (front/rear – optional PCCB system) mm 410 mm / 390 mm
Rotor thickness (front/rear – optional PCCB system) mm 36 mm / 32 mm
Standard wheels 20″ / 21″ Carrera S
Wheels (front/rear) 8.5J x 20″ / 11.5j X 21″
Tires (front/rear) 245/35 ZR 20 / 305/30 ZR 21
Transmission
Number of gears 8
Transmission type 8-speed dual-clutch PDK
Ratios
1st 4.89
2nd 3.17
3rd 2.15
4th 1.56
5th 1.18
6th 0.94
7th 0.76
8th 0.61
Reverse 3.99
Final drive ratio front axle 0
Dimensions, Aerodynamics, & Weight
Length with standard PASM Sport Suspension (inches/mm) 177.9 in. / 4519 mm
Length with optional PASM Sport Suspension (inches/mm) 178.4 in. / 4530 mm
Wheelbase (inches/mm) 96.5 in. / 2450 mm
Width w/ mirrors (inches/mm) 79.7 in. / 2024 mm
Width w/o mirrors (inches/mm) 72.9 in. / 1852 mm
Height with standard PASM suspension (inches/mm) 51.2 in. / 1300 mm
Height with optional PASM Sport Suspension (inches/mm) 50.8 in. / 1291 mm
Track width front (inches/mm) 62.5 in. / 1589 mm
Track width rear (inches/mm) 61.2 in. / 1557 mm
Drag coefficient (Cd) 0.31
Cargo area volume (cu.-ft.) front trunk 132 I / 4.66 cu.-ft.
Cargo area volume (cu.-ft.) rear seats 264 / 9.32 cu.-ft.
Fuel tank capacity – refill volume (gal) 16.9 gal.
Curb weight (lbs) 3382 lbs.
Gross Vehicle Weight (lbs) 4376 lbs.
Payload range (lbs) 994 lbs.
Performance
Top track speed PDK (mph) 191 mph
Acceleration 0-60 PDK (sec) 3.5 sec.
Acceleration 0-60 PDK with Launch Control (sec) 3.3 sec.
Quarter mile time PDK (sec) 11.9 sec.
Quarter mile time PDK with Launch Control (sec) 11.7 sec.
Fuel Economy/Rating
Rating
City 18 mpg
Highway 24 mpg
Combined 20 mpg

Manual 992 Carrera S Specs

Model 992 911 Carrera S with Manual
Engine
Engine layout Rear Engine
Engine type Boxer, twin-turbo
Cylinders 6
Valves per cylinder 4
Construction Aluminum crankcase and heads
Fuel injection Direct Fuel Injection (DFI)
Fuel Premium
Displacement (Liters) 3.0 L
Bore/Stroke (mm/mm) 91.0 mm / 76.4 mm
Maximum power output @ engine speed 443 hp @ 6500 rpm
Maximum torque @ engine speed 390 lb.-ft. @ 2300-5000 rpm
Maximum engine speed 7500
Compression ratio (tolerance +/- 0.3) 10.2:1
Output per liter 148 hp
Lubrication Integrated dry-sump
Power to weight ratio (lb/hp) 7.5
Drivetrain Rear-wheel drive
Chassis & Suspension
Body Monocoque lightweight body in a combination of steel, aluminum, and magnesium
Front Axle MacPherson strut with anti-roll bar
Rear Axle Aluminum multi-link with anti- roll bar
Steering System Variable ratio electromec. power steering
Steering Ratio 15.0 : 1 (on-center) to 12.25 : 1
Steering Ratio with rear-axle steering 14.1 : 1 (on-center) to 12.25 : 1
Turning Circle 36.8 ft / 35.8 ft. (with rear axle steering)
Brakes & Wheels
Caliper type Aluminum monobloc fixed- caliper brake
Rotor material Steel
Caliper color Red
Number of pistons (front/rear) 6 / 4
Rotor diameter (front/rear) mm 350 mm / 350 mm
Rotor thickness (front/rear) mm 34 mm / 28 mm
Caliper type (optional PCCB system) Aluminum monobloc fixed- caliper brake
Rotor material (optional PCCB system) Carbon-ceramic composite
Caliper color (optional PCCB system) Yellow
Number of pistons (front/rear – optional PCCB system) 6 / 4
Rotor diameter (front/rear – optional PCCB system) mm 410 mm / 390 mm
Rotor thickness (front/rear – optional PCCB system) mm 36 mm / 32 mm
Standard wheels 20″ / 21″ Carrera S
Wheels (front/rear) 8.5J x 20″ / 11.5j X 21″
Tires (front/rear) 245/35 ZR 20 / 305/30 ZR 21
Transmission
Number of gears 7
Transmission type 7-speed manual transmission
Ratios
1st 3.91
2nd 2.29
3rd 1.58
4th 1.18
5th 0.94
6th 0.79
7th 0.62
8th
Reverse 3.55
Final drive ratio front axle 0
Dimensions, Aerodynamics, & Weight
Length with standard PASM Sport Suspension (inches/mm) 177.9 in. / 4519 mm
Length with optional PASM Sport Suspension (inches/mm) 178.4 in. / 4530 mm
Wheelbase (inches/mm) 96.5 in. / 2450 mm
Width w/ mirrors (inches/mm) 79.7 in. / 2024 mm
Width w/o mirrors (inches/mm) 72.9 in. / 1852 mm
Height with standard PASM suspension (inches/mm) 51.2 in. / 1300 mm
Height with optional PASM Sport Suspension (inches/mm) 50.8 in. / 1291 mm
Track width front (inches/mm) 62.5 in. / 1589 mm
Track width rear (inches/mm) 61.2 in. / 1557 mm
Drag coefficient (Cd) 0.31
Cargo area volume (cu.-ft.) front trunk 132 I / 4.66 cu.-ft.
Cargo area volume (cu.-ft.) rear seats 264 I / 9.32 cu.-ft.
Fuel tank capacity – refill volume (gal) 16.9 gal.
Curb weight (lbs) 3298 lbs.
Gross Vehicle Weight (lbs) 4431 lbs.
Payload range (lbs) 945 lbs.
Performance
Top track speed PDK (mph) 191 mph
Acceleration 0-60 PDK (sec) 4.0 sec.
Acceleration 0-60 PDK with Launch Control (sec)
Quarter mile time PDK (sec)
Quarter mile time PDK with Launch Control (sec)
Fuel Economy/Rating
Rating Premium
City 17 mpg
Highway 25 mpg
Combined 20 mpg
