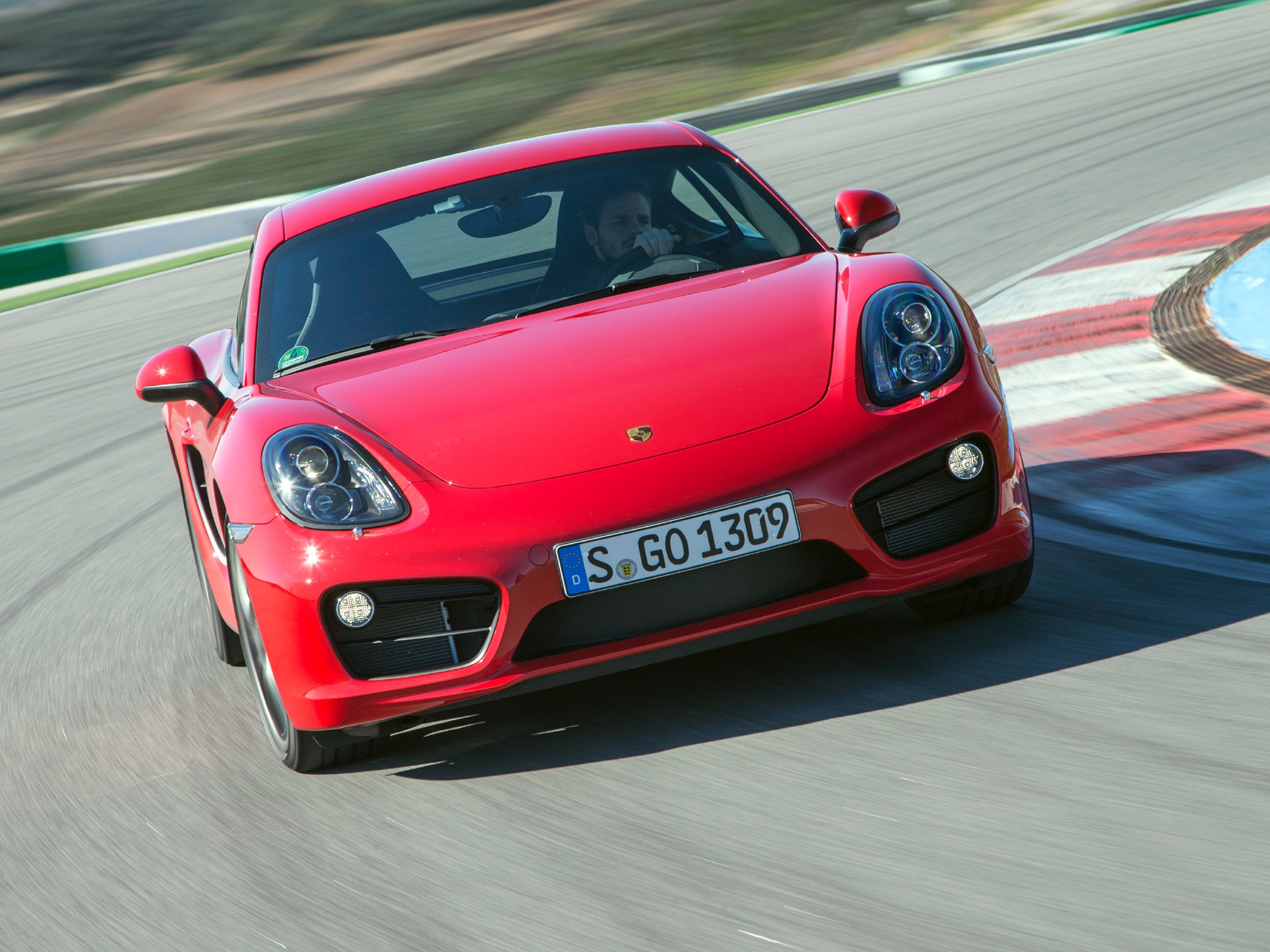

Porsche Cayman S (2014) – Specifications

2014 Porsche Cayman S Technical Specifications

Released At 2012 LA Auto Show
Built At Stuttgart, Germany
Price $ $63,800
Engine Flat-6
Position Mid, Longitudinal
Aspiration Natural
Block Material Aluminum
Valvetrain DOHC, 4 Valves per Cyl w/VVT & VarioCam Plus
Fuel Feed Direct Fuel Injection
Displacement 3436 cc / 209.68 in³
Bore 97 mm / 3.8 in
Stroke 77.5 mm / 3.1 in
Compression 12.5:1
Power 232 kw / 311.1 bhp @ 6700 rpm
Specific Output 90.54 bhp per litre
Bhp/weight 235.68 bhp per tonne
Torque 360 nm / 265.5 ft lbs @ 4500 rpm
Redline 7800
Body / Frame Unitary Steel & Aluminum Monocoque w/Aluminum Hood
Driven Wheels RWD
Front Tires 235/40 ZR 19
Rear Tires 265/40 ZR 19
Front Brakes Ventilated Discs w/4-Piston Aluminum Monobloc Calipers
F Brake Size 28 x 330 mm / 1.1 x 13.0 in
Rear Brakes Ventilated Discs w/4-Piston Aluminum Monobloc Calipers
R Brake Size 20 x 299 mm / 0.8 x 11.8 in
Front Wheels F 48.3 x 20.3 cm / 19 x 8 in
Rear Wheels R 48.3 x 24.1 cm / 19 x 9.5 in
F Suspension MacPherson Struts w/Gas-Pressure Dampers, Anti-Roll Bar
R Suspension Transverse Control Arms w/Coil Springs over Gas-Pressure Dampers, Anti-Roll Bar
Curb Weight 1320 kg / 2911 lbs
Wheelbase 2475 mm / 97.4 in
Front Track 1526 mm / 60.1 in
Rear Track 1540 mm / 60.6 in
Length 4374 mm / 172.2 in
Width 1801 mm / 70.9 in
Height 1281 mm / 50.4 in
Transmission 6-Speed Manual or 7-Speed PDK Automatic
Tran Clutch 240mm
Gear Ratios 3.31:1, 1.95:1, 1.41:1, 1.13:1, 0.95:1, 0.81:1
Final Drive 3.89:1
Top Speed ~279 kph / 173.26 mph
0 – 100 Kph ~5.0 seconds
0 – 200 Kph ~17.5 seconds
Drag 0.30 Cd
Urban Fuel Econ Eu 12.2 L/100 km or 19.28 mpg-us
Extra Urban Fuel Econ Eu 6.2 L/100 km or 37.94 mpg-us
Combined Fuel Econ Eu 8.8 L/100 km or 26.73 mpg-us
Fuel Capacity 64 litres or 16.90 gal.
