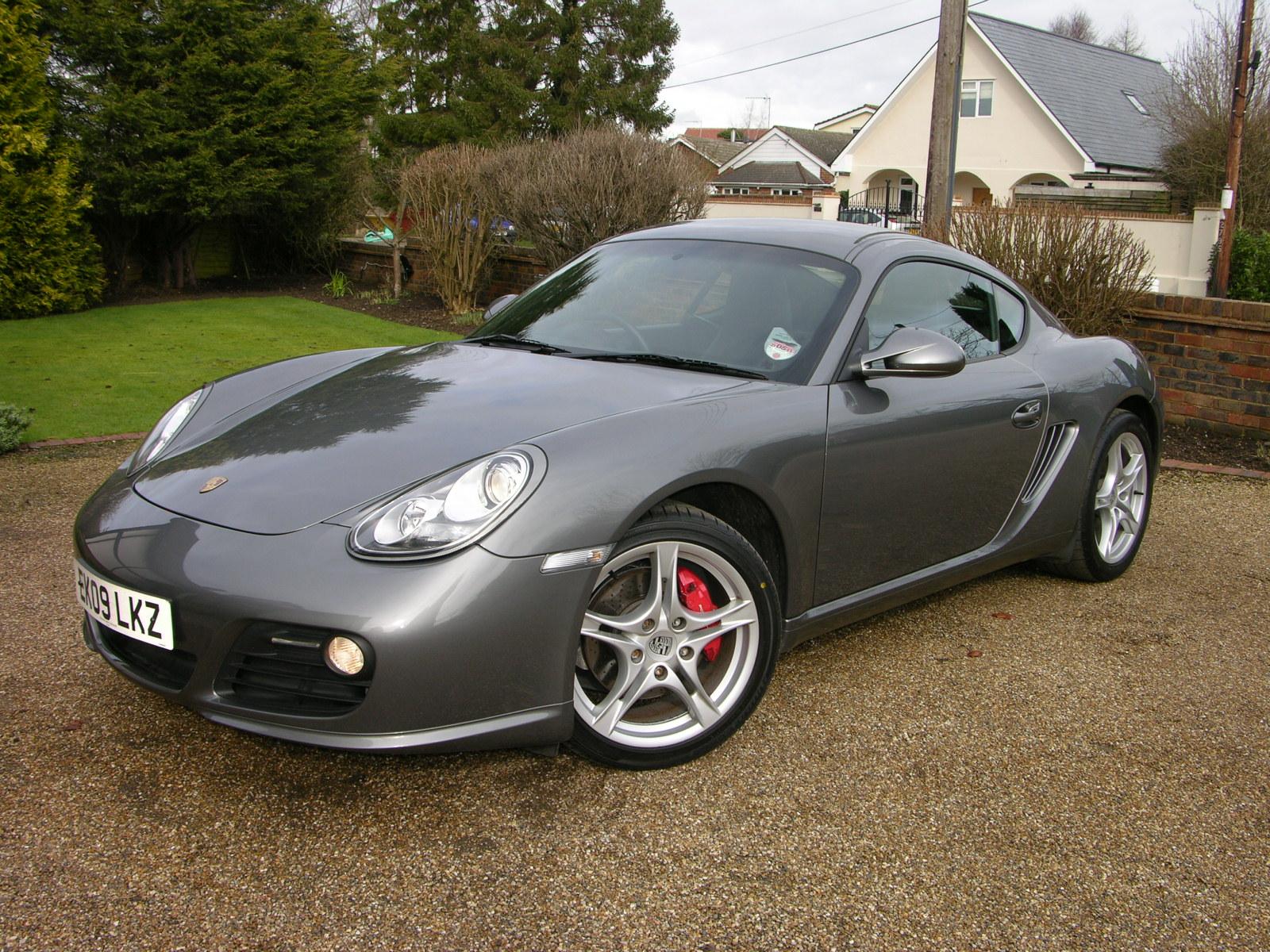

Porsche Cayman S (2009) – Specifications

2009 Porsche Cayman S Technical Specifications

Engine Type Flat 6
Induction Normally-aspirated
Cooling Water-cooled
Valvetrain Double overhead camshafts
Injection Port injection
Bore X Stroke 3.82 in/97.0 mm x 3.05 in/77.5 mm
Displacement 209.60 cu-in/3,436 cc
Horsepower 320 bhp @ 7200 rpm
Torque 273 ft lbs @ 4750 rpm
Max Rpm 7500
Compression Ratio 12.5:1
Transmission Options 6-speed manual, 7-speed PDK
Chassis Type Mid-engined, rear-wheel drive
Curb Weight 2,976 lbs. manual, 3,031 lbs. PDK
Height 51.38 in/1,305 mm
Ground Clearance 4.41 in/112 mm, 4.09 in/104 mm w/PASM
Length 171.14 in/4,347 mm
Wheelbase 95.08 in/2,415 mm
Width 70.91 in/1,801 mm
Track Front 58.50 in/1,486 mm
Track Rear 60.16 in/1,528 mm
Drag Coefficient 0.29 manual/0.30 PDK
Wheel Size Front 18 x 8
Wheel Size Rear 18 x 9
Tire Size Front 235/40 ZR18
Tire Size Rear 265/40 ZR18
Caliper Front Fixed 4-piston
Caliper Rear Fixed 4-piston
Disc Type Front Ventilated discs
Disc Type Rear Ventilated discs
Disc Size Front 12.52 in/318 mm x 1.10 in/28 mm
Disc Size Rear 11.77 in/299 mm x 0.94 in/24 mm
0 To 60 Mph 4.9 seconds manual/4.8 seconds PDK
Top Speed 172 mph manual/171 mph PDK
Mpg City 19 manual/20 PDK
Mpg Highway 26 manual/29 PDK
Mpg Combined 22 manual/23 PDK
Fuel Tank Capacity 16.9 U.S. gallons
REQUIRED OCTANE Premium unleaded (91+)
