Porsche 918 Spyder Prototype (2013)

The 918 Spyder concept. Electric-mobility plus stunning looks.

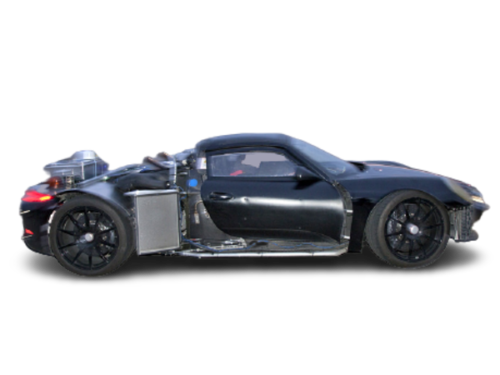

Porsche 918 Spyder Prototyp Profile - Large
Model
Porsche 918 Spyder Prototyp
Years
2013 (Development Car)
Engine
Hybrid V8 w/2 Electric Motors
Power
770 bhp
Torque
553.2 ft lbs
0 - 60 mph
~3.0 seconds
Top Speed
202 mph

Porsche 918 Spyder Prototypes – Ultimate Guide

The Timeline & Development of the Porsche 918

The future is taking shape: with more than half of its development time completed, the Porsche 918 Spyder is firmly on course to become the super sports car of tomorrow. As a plug-in hybrid vehicle, it logically combines a high-performance combustion engine with cutting-edge electric motors to deliver performance that is beyond extraordinary: the best of both worlds endows the 918 with the dynamics of a racing car packing more than 770 hp of power accompanied by fuel consumption, which at approximately three litres per 100 kilo -metres, is less than that of most modern compact cars.

Moreover, Porsche is breaking yet more new ground with the technology demonstrator with spectacular solutions such as the full carbon fibre reinforced plastic (CFRP) body, fully adaptive aerodynamics, adaptive rear-axle steering and the upward-venting “top pipes” exhaust system. In the process, the 918 Spyder is offering a glimpse of what Porsche Intelligent Performance may be capable of in future.

The 918 Spyder has been designed as a super sports car and the legitimate successor to the Carrera GT. As such, the first goal was obvious: improving yet again on the Carrera GT’s performance. As far as is currently known, the 918 Spyder will be significantly faster – both in terms of acceleration and also performance on the racing circuit: less than three seconds from zero to 100 km/h (Carrera GT: 3.9 seconds) and less than 7:22 minutes on the Nürburgring Nordschleife (Carrera GT: 7:32 minutes) is an unmistakable statement. However, the uniqueness of the 918 Spyder is best represented by the union of outstan -ding performance with a level of efficiency never seen before in the super sports car sector.Fuel consumption of approximately three litres per 100 kilometres and an electric rangein excess of 25 kilometres are unprecedented.

Five modes for three motors

The core of the 918 Spyder concept is the distribution of propulsive power across three power units, collaboration between which is controlled by an intelligent management system using five pre-selectable modes. This operating strategy is a core competency of the 918 Spyder. It takes the best possible account of the different requirements between an efficiency-orientated driving profile on the one hand and maximum performance on the other. In order to make the best possible use of these different approaches, the Porsche developers defined a total of five operating modes that can be activated via a “map switch” in the steering wheel, just like in motor sports cars.

When the vehicle is started up, the “E-Power” mode is the default operating mode as long as the battery is sufficiently charged. In ideal conditions, the 918 Spyder can cover more than 25 kilometres on purely electric power. In this mode, the combustion engine is only used when needed: maximum engine power is available at a moment’s notice by means of the kick-down function. If the charge state of the battery falls below a set minimum value, the vehicle automatically switches to hybrid mode.

“Race Hybrid” is the mode for the highest possible performance and especially sporty dri -ving style. The combustion engine is chiefly used under high load, and charges the battery when the driver is not utilising the maximum output. The electric motors provide additional support as necessary in the form of a boost when the driver requires even more power. The electric motors are used up to the maximum power output limit in order to provide the best possible performance for the race track. In this mode, the battery charge state is not kept constant, but instead fluctuates across the entire charge range. In contrast to Sport Hybrid mode, the electric motors run at their maximum power output limits for a short time, thus ensuring better boosting. This increased output is balanced out by the combustion engine charging the battery more powerfully.

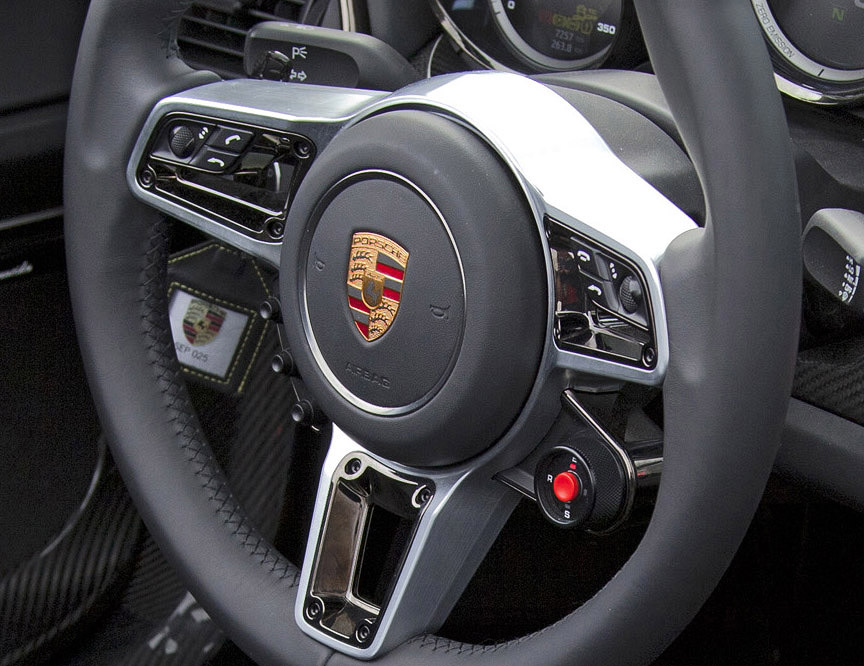

The “Hot Lap” button in the middle of the map switch releases the 918 Spyder’s last reserves and can only be activated in “Race Hybrid” mode. Similar to a qualification mode, this pushes the traction battery to its maximum power output limits for a few fast laps. This mode uses all of the available energy in the battery.

Main propulsion

The main source of propulsion is the 4.6-litre, eight cylinder engine delivering more than 570 hp of power, which was directly derived from the power unit in the successful RS Spyder and explains why it delivers engine speeds of up to 9,000 rpm. Like the RS Spyder’s racing engine, the 918 Spyder power unit features dry-sump lubrication with a separate oil tank and oil extraction. In order to save weight, the four extraction pumps are made of plastic. Further extensive lightweight design measures resulted in, for example, titanium connec -ting rods, thin-wall, low-pressure casting on the crank case and the cylinder heads, a high-strength, light-weight steel crankshaft and the extremely thin-walled, alloy steel exhaust system. The result of the weight and performance optimisations is a power output per litre of approx. 125 hp/l, which is significantly higher than that of the Carrera GT (106 hp/l) and outstanding for a naturally aspirated engine.

The V8 engine is coupled to the hybrid module, the 918 Spyder being designed as a parallel hybrid like Porsche’s current hybrid models. Essentially, the hybrid module comprises a 90 kW electric motor and a decoupler acting as the connection with the combustion engine.As a result of the parallel hybrid configuration, the 918 Spyder can be powered at the rear axle both individually by the combustion engine or electric motor or via both drives jointly. As is typical for a Porsche super sports car, the power pack in the 918 Spyder has been placed in front of the rear axle, and does not have any direct mechanical connection to the front axle.

Top Pipes

It isn’t just this engine’s performance but also the sound it makes that stokes the emotionality of the 918 Spyder.

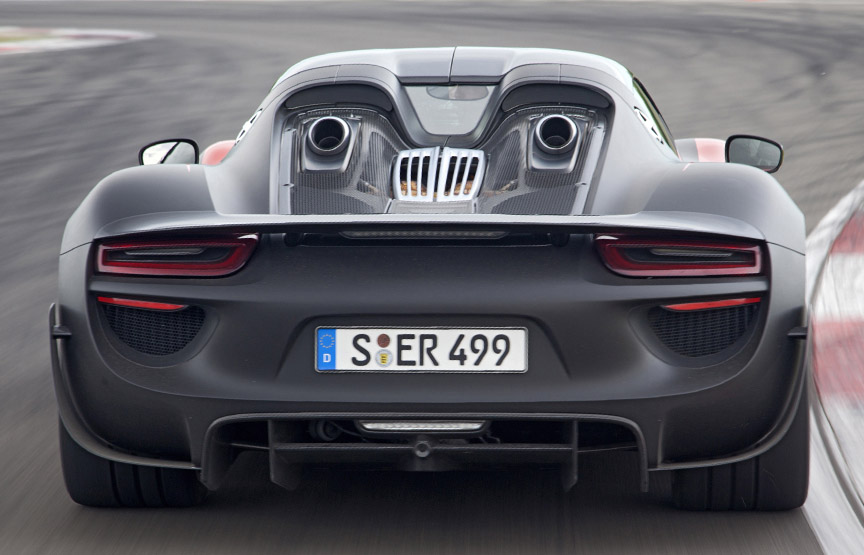

This is attributable first and foremost to the so-called top pipes: the tail -pipes terminate in the upper part of the rear end immediately above the engine. No other production vehicle exhibits this solution. The top pipes’ greatest benefit are the extremely short distances, as the hot exhaust gases are evacuated by the shortest, direct route and the exhaust gas back pressure remains low. This design requires a new, thermodynamic air channelling concept: With the HSI engine, the hot side is located inside in the cylinder V, the intake tracts are outside. There’s a further benefit: the engine compartment remains cooler. This is especially beneficial to the lithium-ion hybrid battery, as it provides optimum perfor -manceat temperatures between 20 and 40 degrees Celsius. As such, less energy needs to be used for active cooling of the battery.

A seven-speed Doppelkupplungsgetriebe (PDK) transmission takes care of power transmission to the rear axle. The high-performance transmission based on the PDK in the 911 Turbo has undergone a complete overhaul for the 918 Spyder and was further optimised for high performance. In order to ensure that the installation position and thus the centre of gravity of the entire vehicle were kept low, the gear unit was turned “on its head”, by rotating it 180 degrees about its longitudinal axis, in contrast to the mid-engine, two-seater Boxster, for example. If no propulsive power is required on the rear axle, the two motors can be decoupled by opening the decoupler and PDK clutches. This is what is behind the Porsche hybrid drive’s trademark “coasting” with the combustion engine switched off.

Lithium-ion battery

The electric energy for the electric motors is stored by a liquid-cooled lithium-ion battery comprising 312 individual cells with an energy content of approximately seven kilowatt hours. The battery of the 918 Spyder has a performance-orientated design in terms of both power charging and output in order to fulfil the performance requirements of the electric motor. The power capacity and the operating life of the lithium-ion traction battery are dependent on several factors, including thermal conditions. That is why the 918 Spyder’s battery is liquid-cooled by a dedicated cooling circuit.

To supply it with energy, Porsche developed a new system with a plug-in charging inter face and multiplied recuperation potential. The plug-in interface in the B-column on the front passenger side enables the storage battery to be connected directly with the home mains supply and charged. The charging interface is standardised for the country of purchase. The charger is located close to the traction battery. It converts the alternating current of the mains supply into direct current with a maximum charge output of 3.6 kW. For example, using the charging cable supplied with it, the battery can be charged within four hours from a ten ampere rated, fused power socket on the German 230 Volt mains supply. A compact charging station is also supplied as standard with the 918 Spyder. This can be installed permanently in the driver’s garage. It permits rapid and convenient charging within approximately two hours, irrespective of regional conditions.

Energy recuperation trebled: recuperation

In order to convert the kinetic energy of the vehicle into electric current when braking signi -ficantly more effectively than today, Porsche’s developers created a new generation of the recuperation system. A modern-day Porsche hybrid recovers braking energy up to a dece -leration of 0.15 g. That corresponds to a braking manoeuvre in which the driver applies approximately 1.5 kilograms of pedal force. The 918 Spyder can recover up to 0.5 g, equa -ting to eleven kilograms of pedal force – that is more than three times the amount of energy. The 918 Spyder can brake using both electric motors and thus recuperate energy for the traction battery. The super sports car features a ceramic braking system (PCCB) as standard.

CFRP Monocoque

Despite, or rather because of the heavy components in the electric motor, the 918 Spyder is a model of lightweight design. The load-bearing structure of its body comprises a mono -coque with a unit carrier, both of them made of carbon fibre reinforced plastic (CFRP). This concept has a critical part to play in the curb weight of less than 1,700 kilograms, an outstandingly low value for a hybrid vehicle in this performance class. A system of adjustable aerodynamic elements ensures unique, fully adaptive aerodynamics that automatically re -con cile optimal efficiency and maximum downforce.

The drivetrain components and all components weighing more than 50 kilograms are loca -ted as low down and as centrally as possible within the vehicle. The result is a slightly rear end biased axle load distribution of 57 per cent on the rear axle and 43 per cent on the front axle, combined with an extremely low centre of gravity, ideal for driving dynamics. The central and low position of the traction battery directly behin the driver not only supports the concentration of masses and the lowering of the centre of gravity; it also provides the best temperature conditions for optimum battery functioning.

Rear-axle steering

The Porsche 918 Spyder’s multi-link chassis is inspired by racing car construction, complemented by additional systems such as the adaptive shock-absorber system PASM and rear-axle steering. Basically, this comprises an electro-mechanical adjustment system on each rear wheel. The adjustment is speed-sensitive and executes steering angles of a few degrees in each direction. The rear axle can therefore be steered in the same direction or the opposite direction to the front wheels. At low speeds, the system steers the rear wheels in the opposite direction to the front wheels. This makes cornering even more direct, faster and more precise, and reduces the turning circle. At higher speeds, the system steers the rear wheels in the same direction as the front wheels. This minimises the “pushing” of the vehicle’s rear end when changing lanes quickly. The result is very secure and stable handling.

More About the 918 Spyder Prototypes

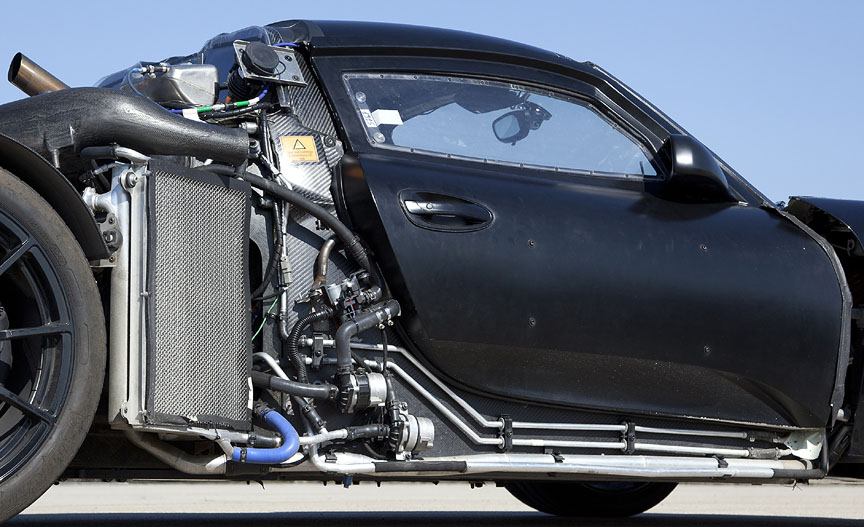

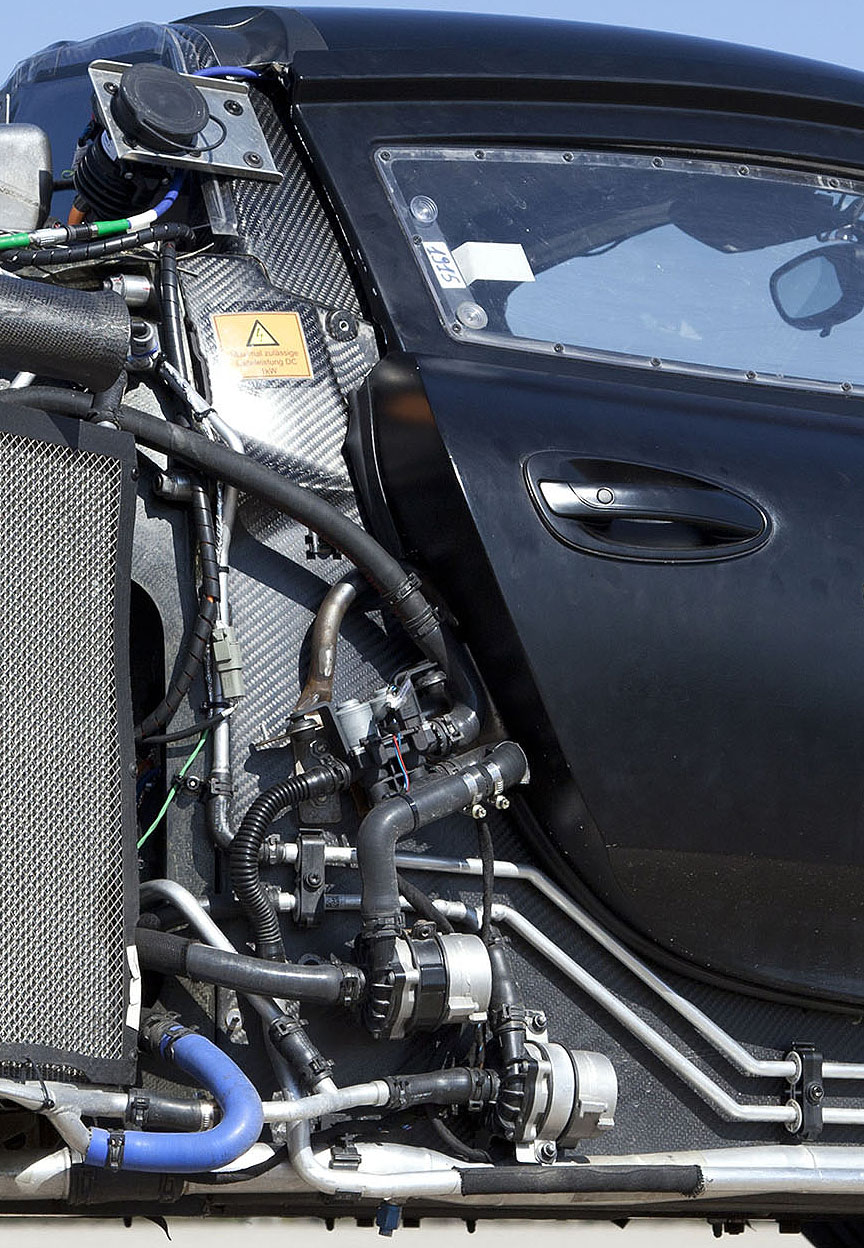

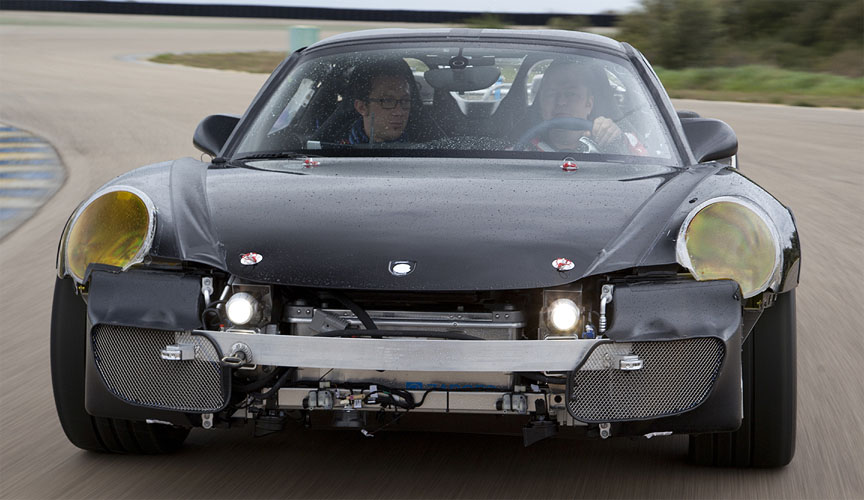

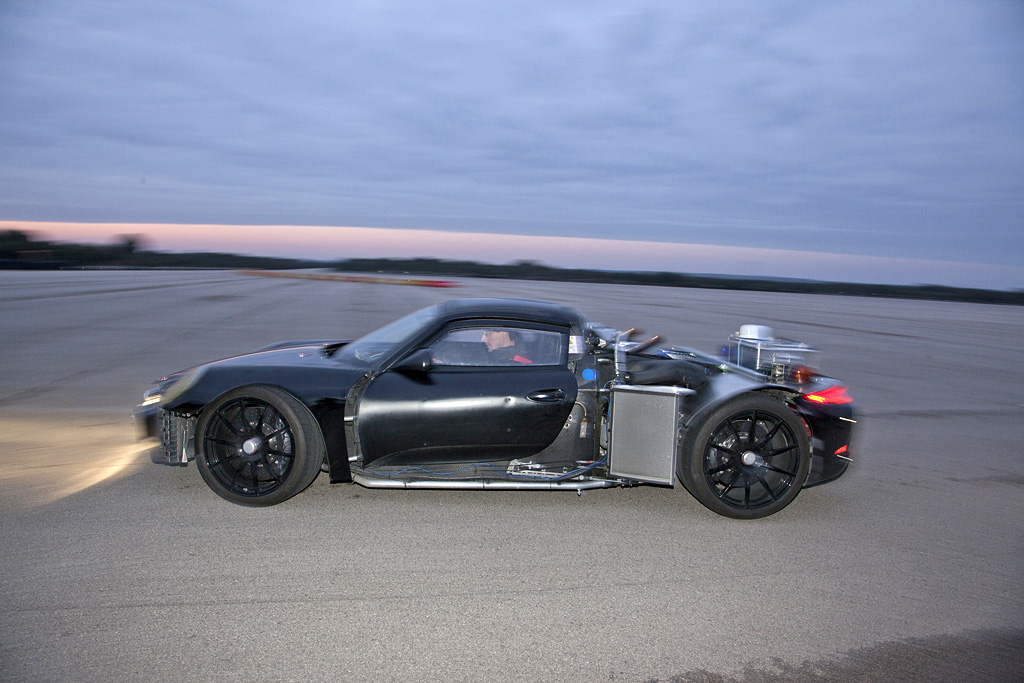

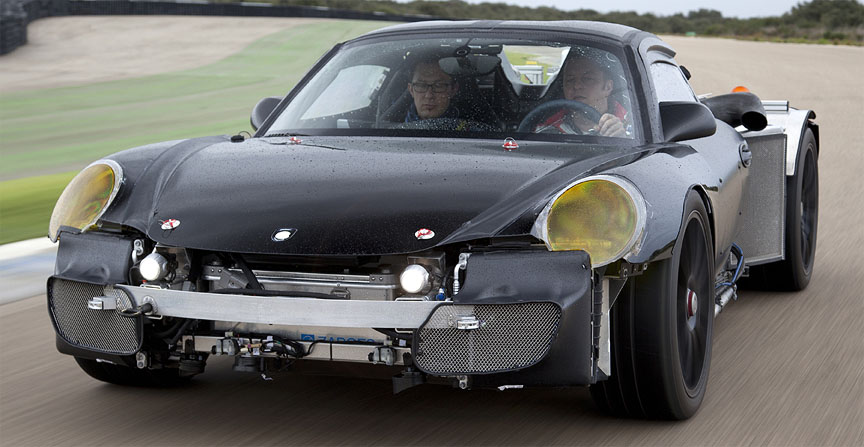

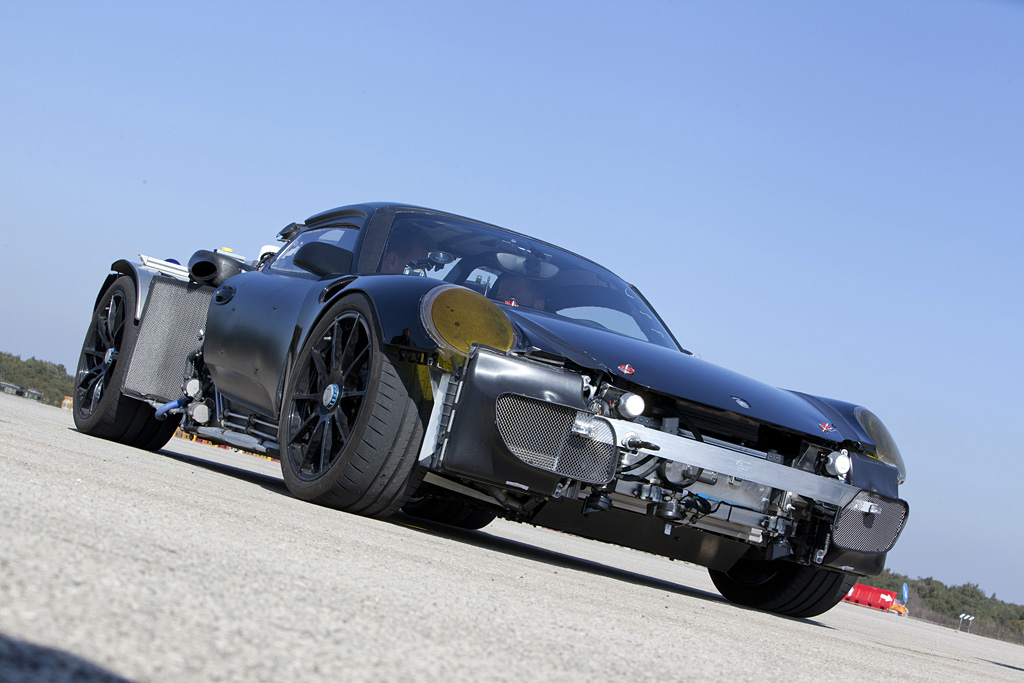

2012 March 26: Rolling chassis

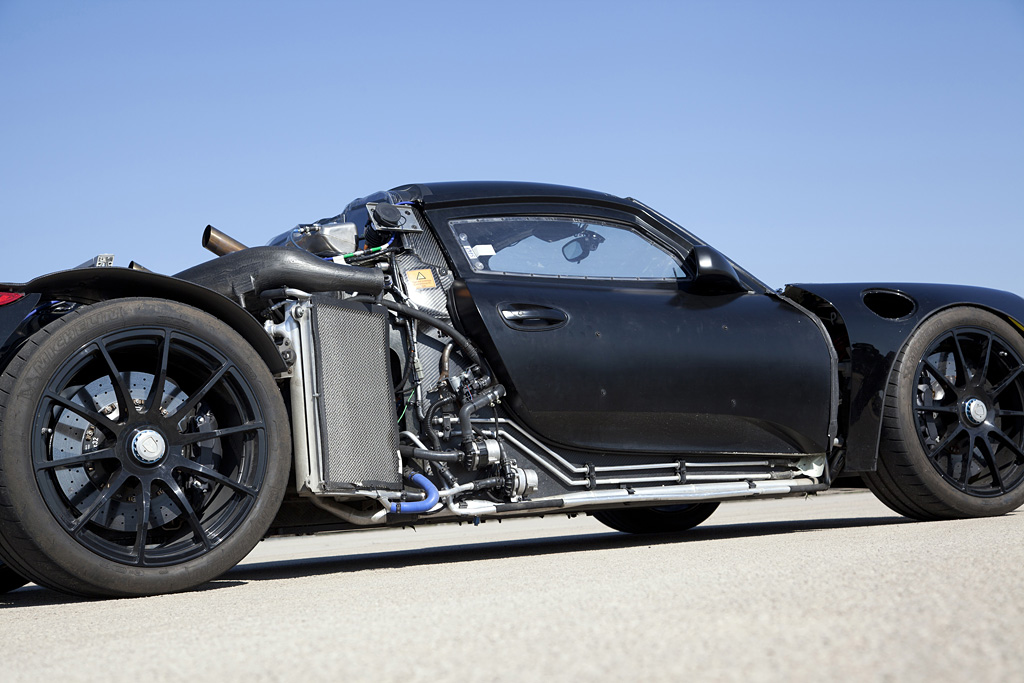

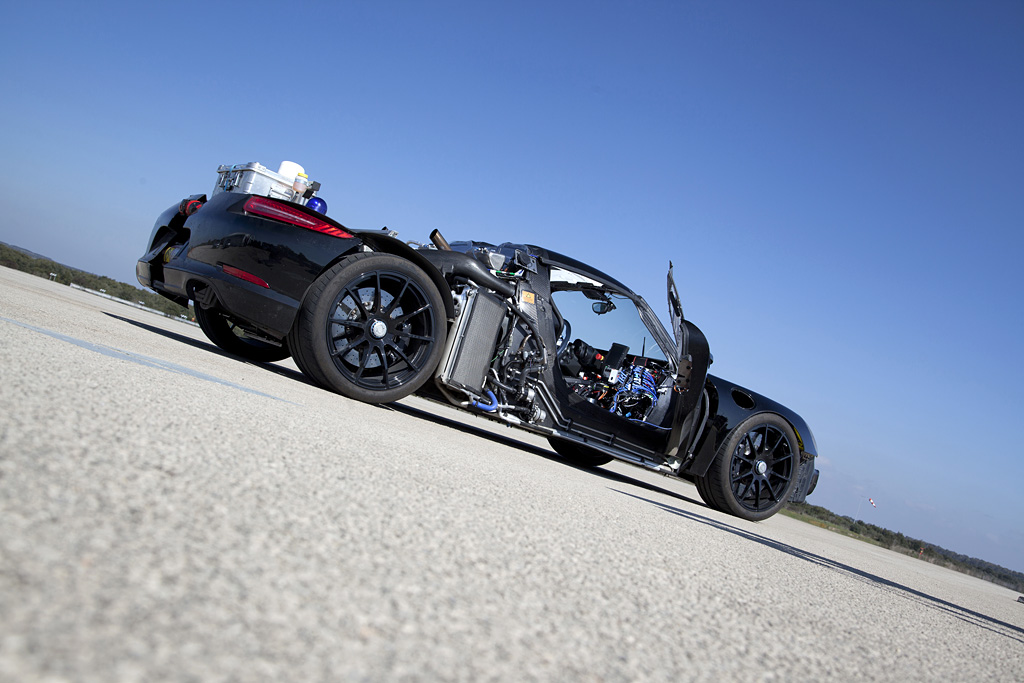

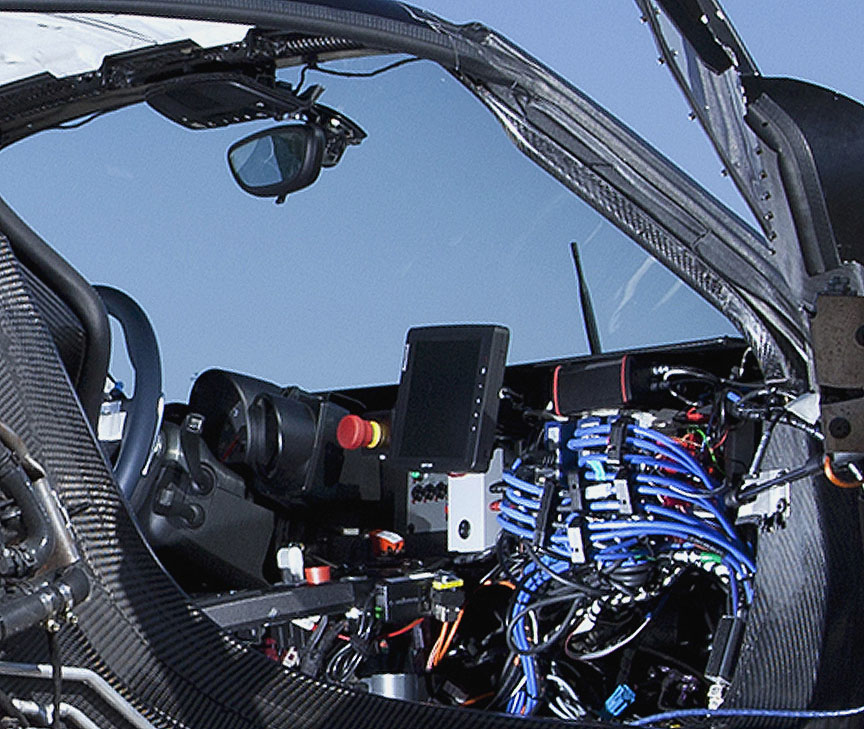

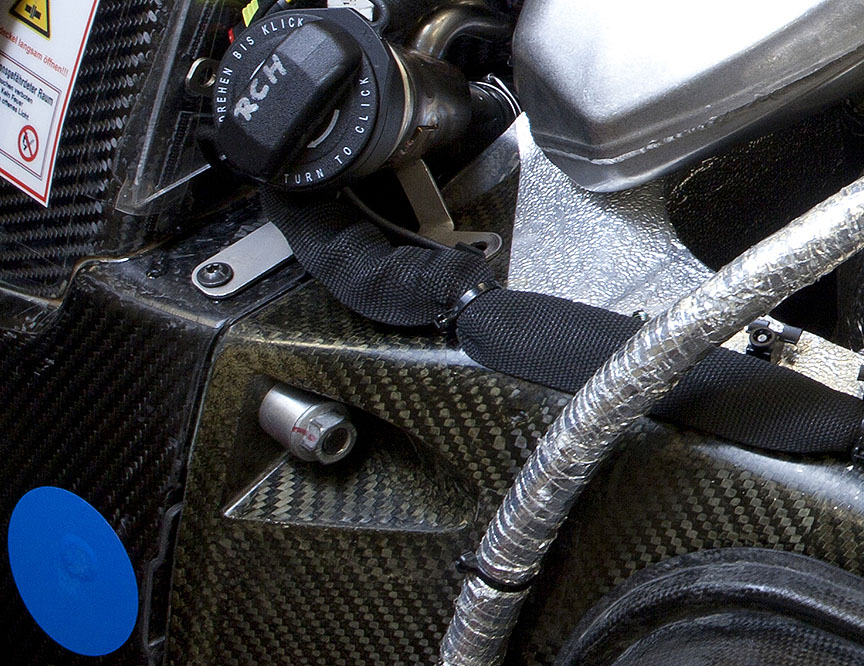

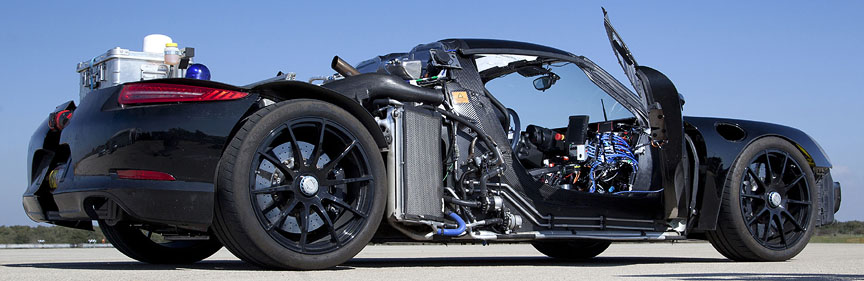

Many body parts used from 911 racing cars to cover up the 918 rolling chassis. © Porsche
© Porsche
Dr. Frank Steffen Walliser, 918 Spyder project manager and Wolfgang Hatz, board member for research and development of Porsche AG. © Porsche
© Porsche
© Porsche
© Porsche

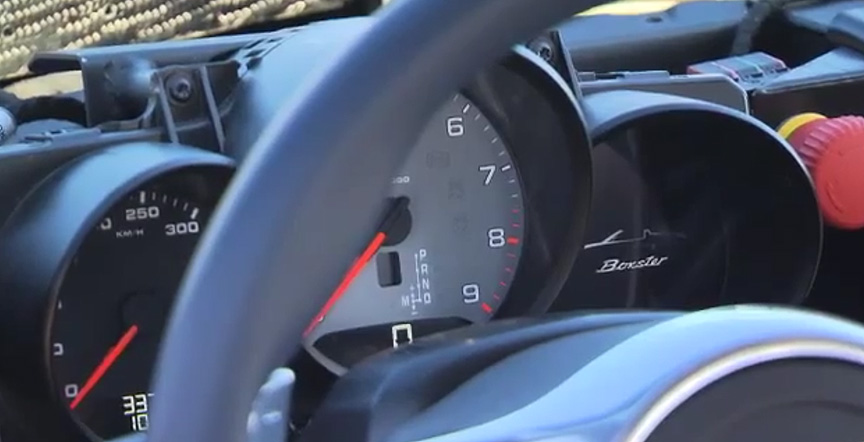

Boxster instruments. © Porsche
© Porsche
© Porsche

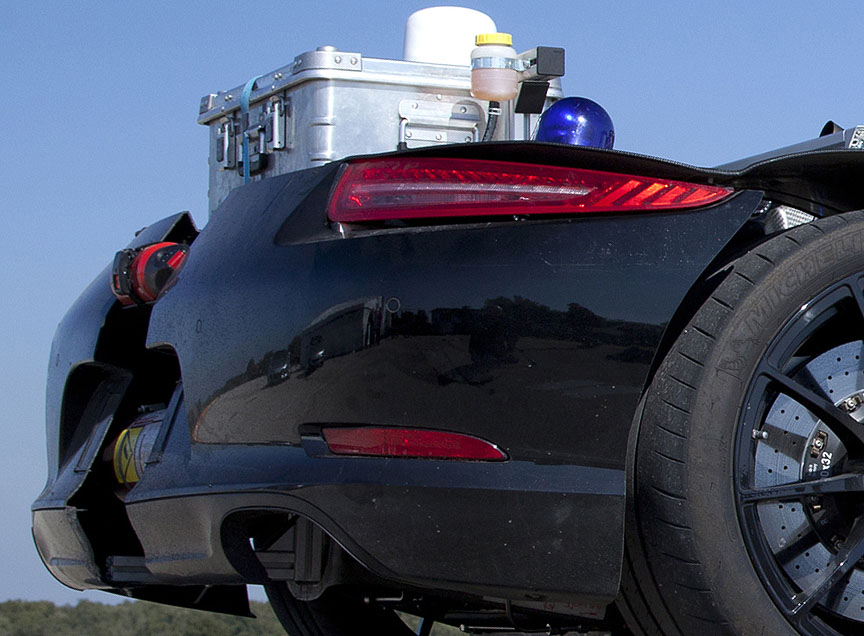

Rear bumper of 911 991 cut in halves. © Porsche

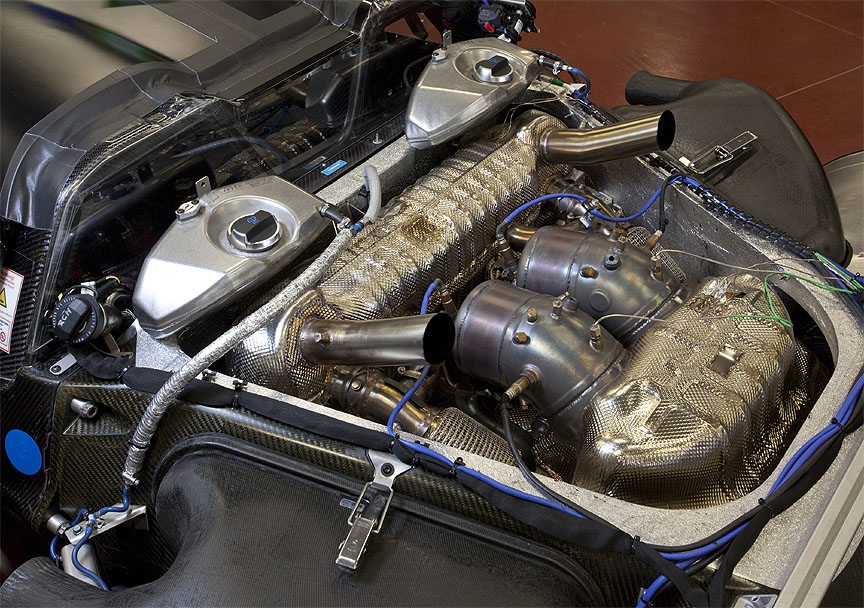

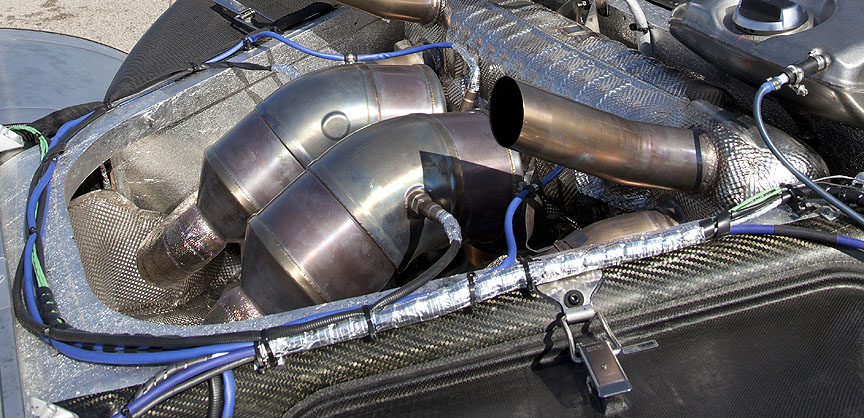

Exhaust system is made of thin high-strength material called Inconel. © Porsche
© Porsche
© Porsche

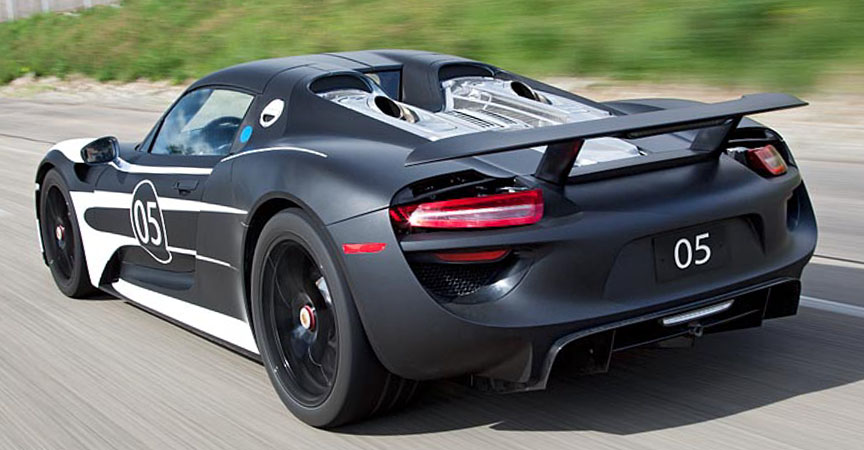

2012 May 15: Road-legal prototype and optional Salzburg livery

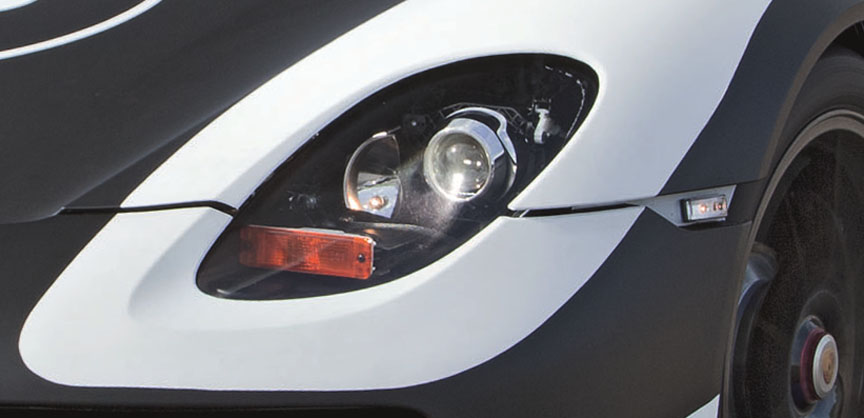

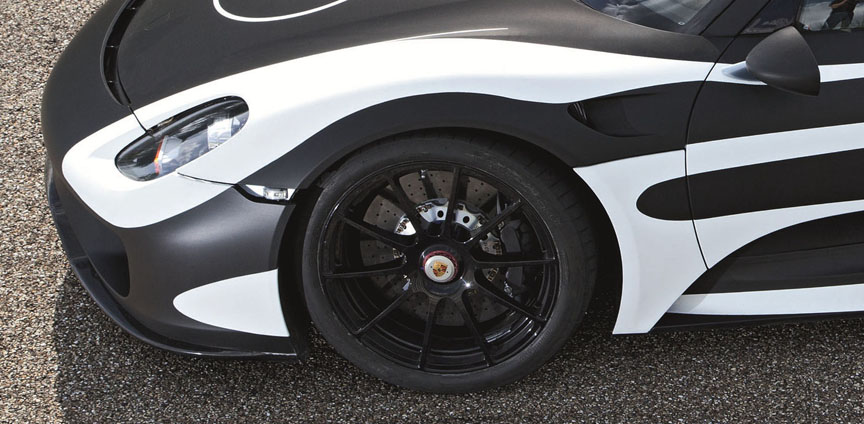

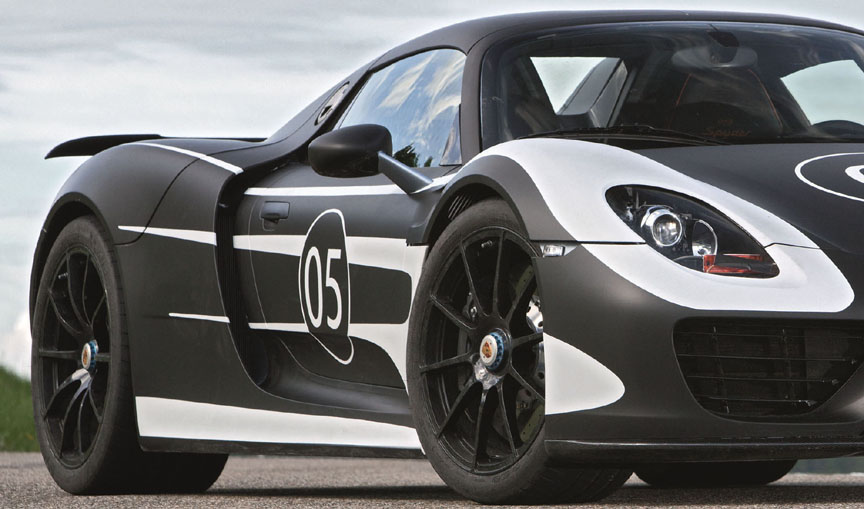

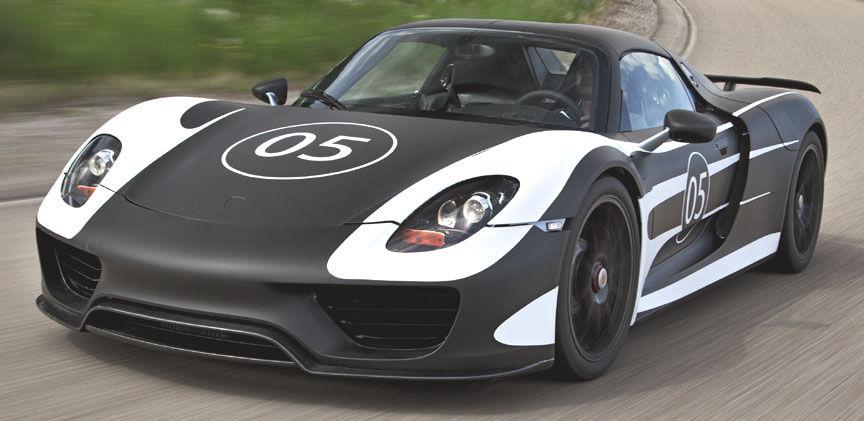

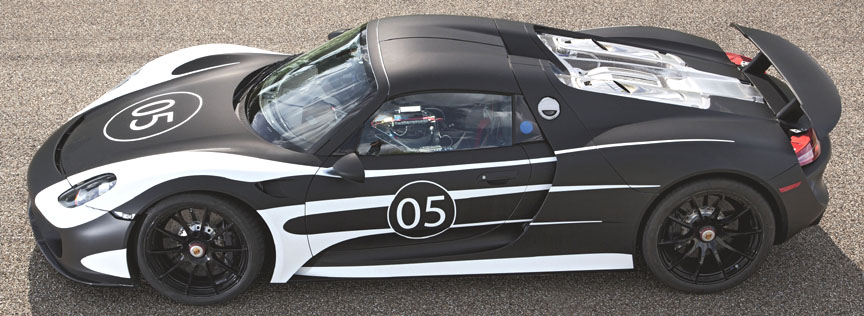

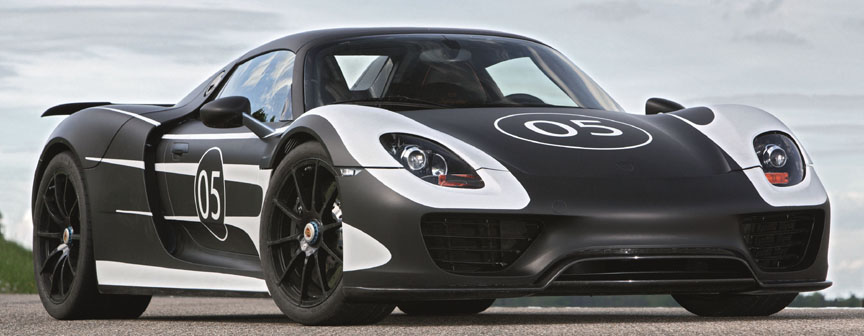

Optional Salzburg livery shown for the first time. It is inspired by the 1970 Le Mans winning 917 of the Porsche Salzburg team. On the prototype the livery is white on black and on the production car it is red on white. © Porsche
© Porsche
© Porsche
© Porsche
© Porsche
© Porsche
© Porsche
Rear lamps still those of the 991 © Porsche

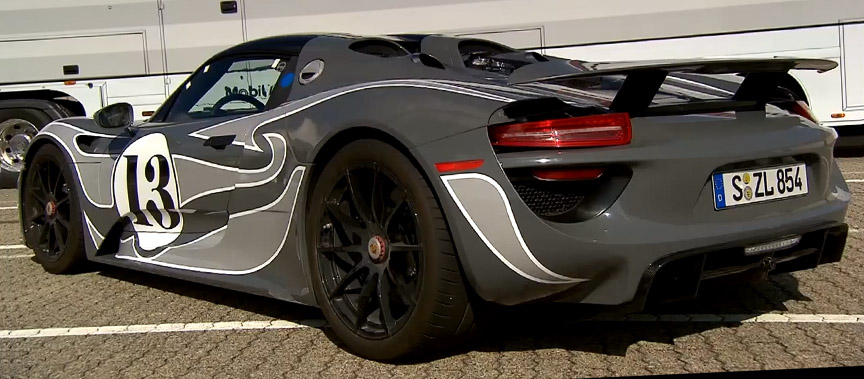

Prototype mimicking the psychedelic livery of the 1970 Le Mans 917. This livery didn’t make it to production. © Porsche

Porsche 918 Development Prototype Videos

evo’s Editorial Director and Founder Harry Metcalfe does a walk around the future of the supercar.

First ride in the Porsche 918 Spyder at Nardo

2012 July 18 (or earlier) test drive on Nürburgring

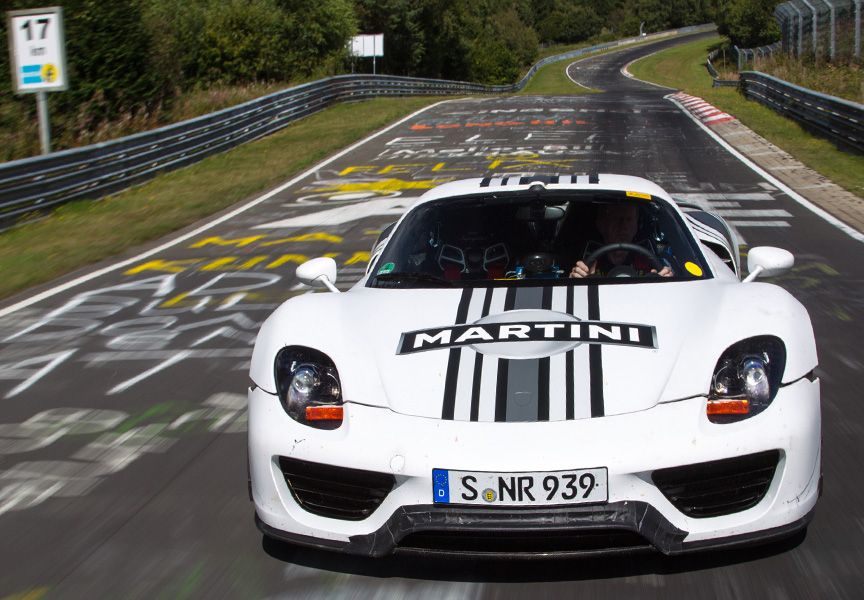

2012 September 18: Nürburgring Nordschleife lap time of 7:14 achieved by Marc Lieb

918 was initially designed to be able to lap Nordschleife in 7:22. Considering its heavy weight, it would be a good result, but as Porsche already had a faster car, the 911 997 GT2 RS with it’s 7:18 lap record, the Weissach engineers had to push the 918 further. The Weissach edition of the 918 Spyder was able to lap the Nordschleife in only 7:14 on September 18, 2012. This of course with the street legal Michelin tyres. And this time even from the standing start!

© Porsche
The fins behind the rear wheels are part of the Weissach racing package. © Porsche
991 rear lamp used on the 918 prototype. © Porsche

2012 September 18: 918 Spyder prototype achieving a 7:14 lap time on Nürburgring Nordschleife. Video shows Walter Röhrl and Chris Harris among the others.

Filmed on September 18 and aired on October 2, 2012 by Chris Harris On Cars. Video shows Holger Bartels, Porsche chassis engineer and Frank Walliser, 918 project leader.

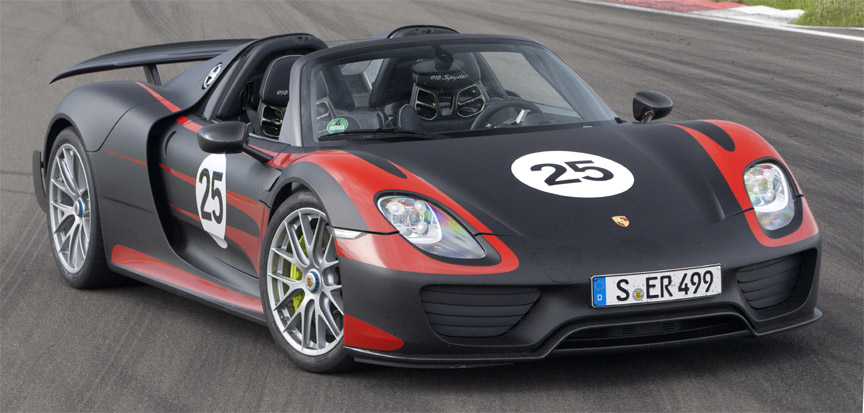

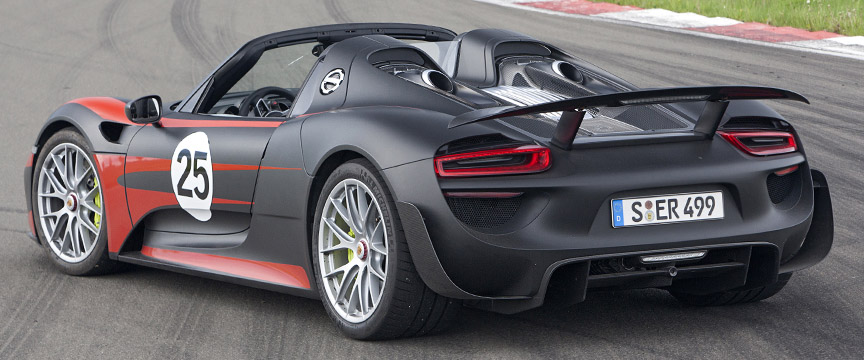

2013 May 9: journalists get to drive the near production ready version

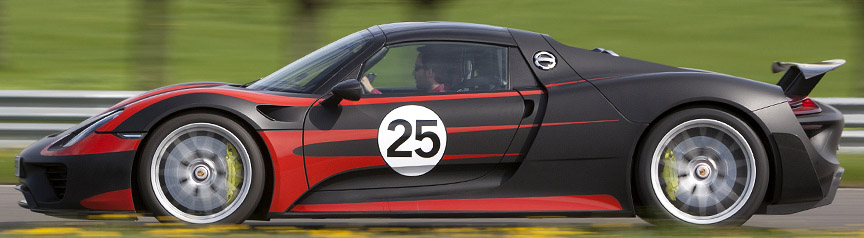

With the May 16, 2013 press release the power was raised: for the 4.6V8 from 426 to 449 kW, front electric motor from 80 to 95 kW, rear electric motor from 90 to 115 kW, combined power up from 585 to 652 kW, torque up from 750 Nm/551lb-ft to 800 Nm/588 lb-ft. This meant the acceleration 0-100 kmh went down from 2.9 to 2.8 seconds, 0-200 kmh down from 8.9 to 7.9 seconds and 0-300 kmh down from 26.9 to 23 seconds. Top speed was up from 203 mph / 326 km/h to 211 mph / 340 km/h. Nice! The journalists got to drive the last, 25th prototype, number ’25’.

Wing up, roof down. © Porsche
Wing down, roof up, front inlet ribs closed. © Porsche

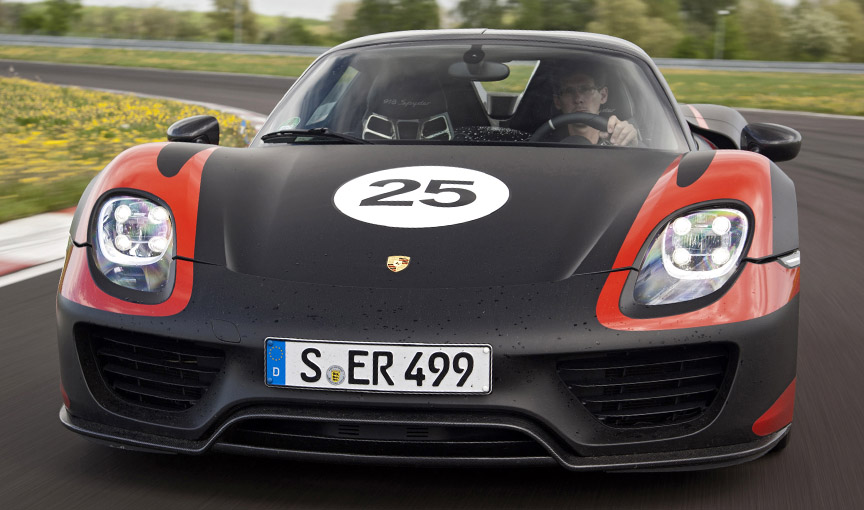

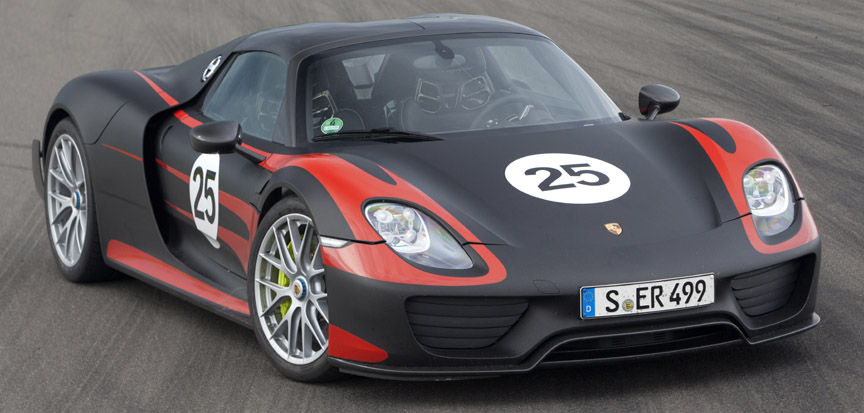

Near production version, front inlet ribs open. Project leader Dr. Frank Walliser at the wheel. © Porsche

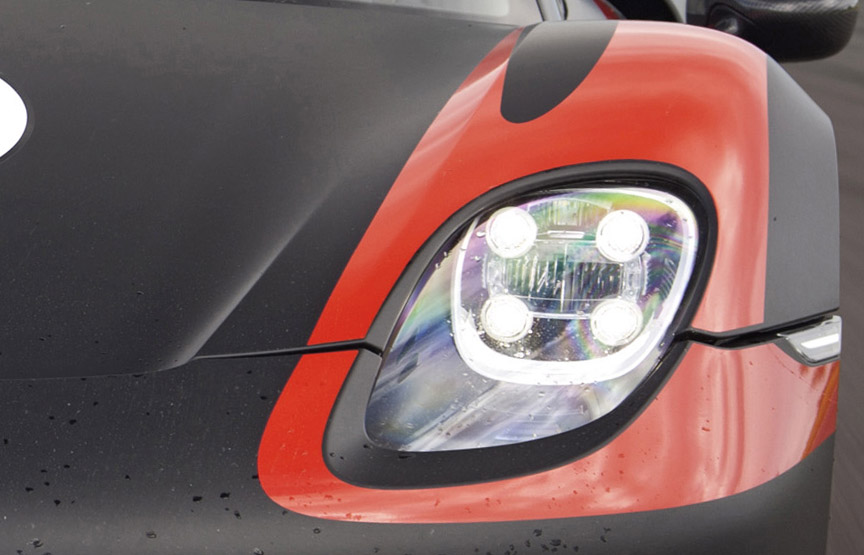

Production headlamps and side blinkers not seen on the earlier prototypes. © Porsche
© Porsche

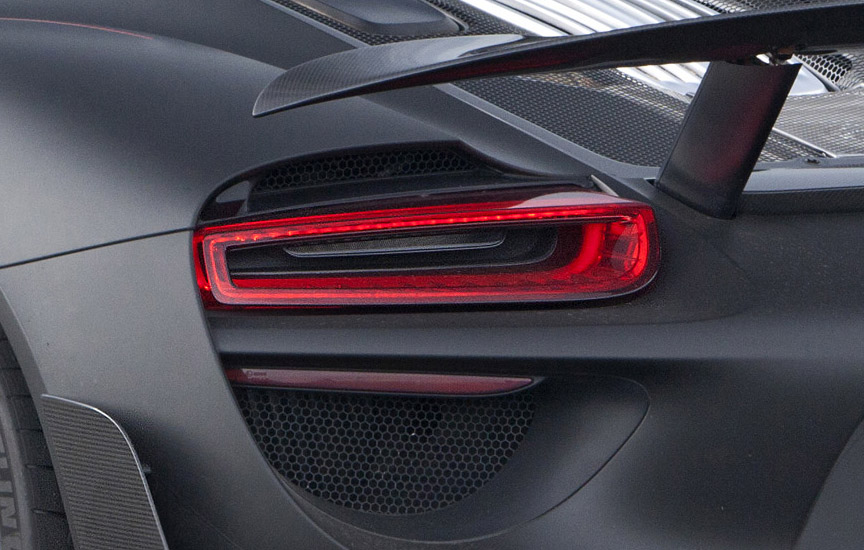

Production rear lamps not seen on the earlier prototypes. © Porsche
© Porsche
Rear side fins come with the Weissach package. © Porsche
© Porsche
© Porsche
© Porsche

2013 September 4: Nordschleife record 6:57

Nordschleife record 6:57 918 Tires
Michelin Pilot Sport Cup 2 looks very simple compared to the Cup 1. © Porsche
Porsche 918 Jump
Minimal lift-off at this jump proves the car has huge downforce. © Porsche
Porsche Record Nurburgring 918 Team
2 cars and 3 drivers were used for the record attempts. © Porsche
Driver 918 Porsche Record
Head of 918 project Frank Walliser, Porsche factory driver Marc Lieb and Porsche test driver Timo Kluck. Walter Röhrl was the third driver, but naturally younger boys are now faster. © Porsche

Marc Lieb’s 6:57 around the 20.8 km Nürburgring Nordcshleife track means his average speed was 112 mph/180 km/h. This is truly an unbelievable result. Especially for those who have been in the Green Hell and understand what it means to go that fast. Of course the optional Weissach package was used together with the standard Michelin Pilot Sport Cup 2 tyres to achieve this. Compare to Marc Lieb’s 7:14 achieved a year ago in a 918 prototype or to the Carrera GT record of 7:28.

The many 918 prorotypes were tested for a total of 1.500.000 km (900.000 miles) before the car was ready for the customers. The prototypes were tested in Italy, USA, South Africa, Scandinavia, France and naturally in Germany on the Nürburgring’s North Loop.
