Porsche 914/4 (1.7L) – Specifications & Performance

Technical Specifications

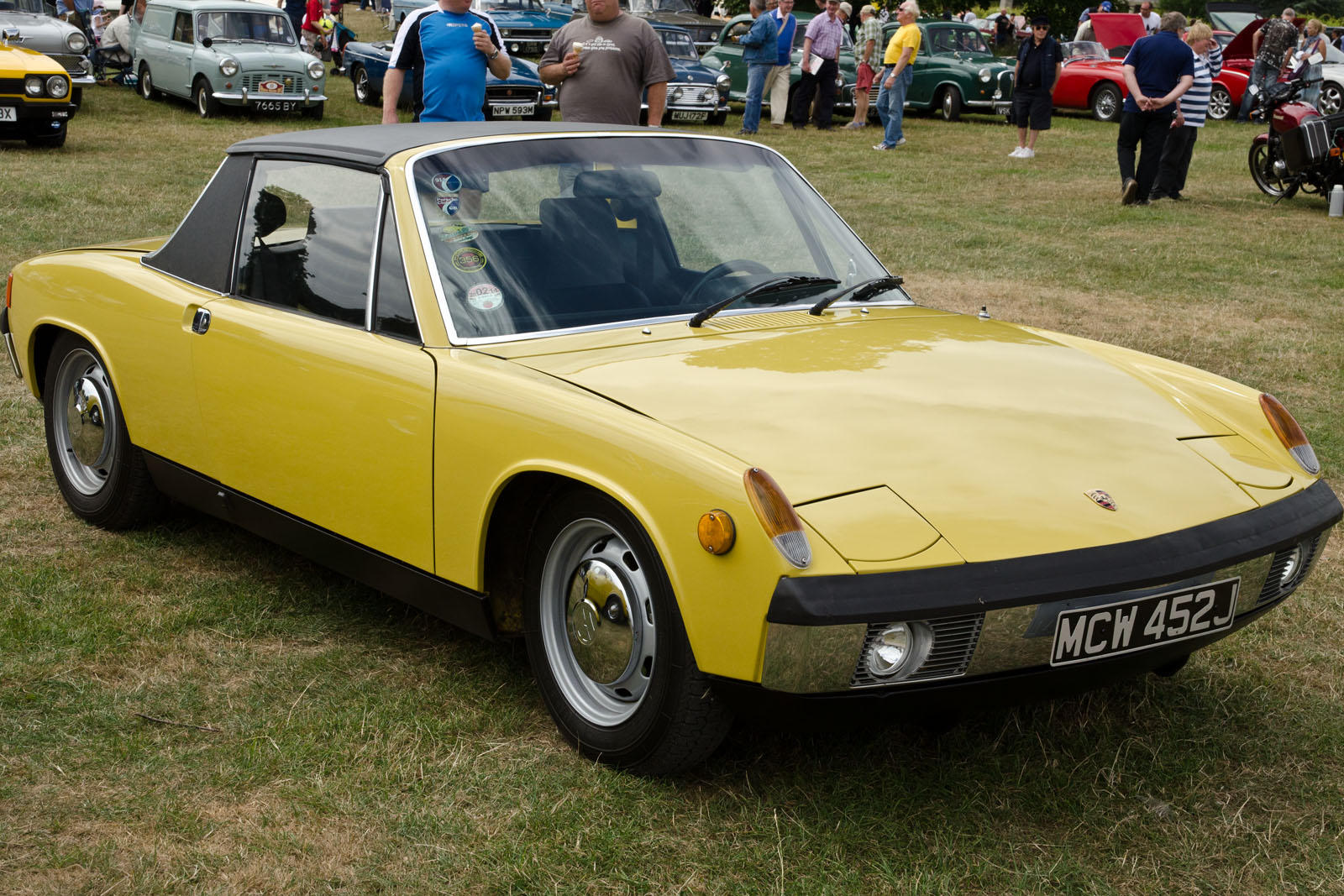

Porsche 914 (1970)

1970 – 1973 Porsche 914 1.7L Specifications

Price $ $3,595 USD
Engine 1.7 L mid-mounted flat-4
Valvetrain OHV
Fuel feeding system
Bosch D-jetronic electronic fuel injection
Engine lubrication system
pressure-circulation (wet sump)
Displacement 1679 cc / 102.5 in³
Bore 90.0 mm / 3.54 in
Stroke 66.0 mm / 2.6 in
Compression 8.2:1
Power
63.4 kw / 85.0 bhp @ 4900 rpm
Specific output 50.63 bhp per litre
bhp/weight bhp per tonne
Torque
139.6 nm / 103.0 ft lbs @ 2800 rpm
Body / Frame Unit Steel
Driven wheels Mid Engine / RWD
Front tires 165SR-15
Rear tires 165SR-15
Brakes 4 disc brakes
f brake size x 279 mm / x 11.0 in
r brake size x 282 mm / x 11.1 in
Wheels
4-bolt, 4.5×15 steel wheels as standard with tubeless 155 tyres (cast alloy and forged wheels optional)
front wheels F 38.1 x 14.0 cm / 15.0 x 5.5 in
rear wheels R 38.1 x 12.7 cm / 15.0 x 5.0 in
Windscreen
tempered glass (laminated optional)
Steering Rack & Pinion
Curb weight 946 kg / 2086 lbs
Wheelbase 2449 mm / 96.4 in
Front track 1336 mm / 52.6 in
Rear track 1374 mm / 54.1 in
Length 3985 mm / 156.9 in
Width 1651 mm / 65.0 in
Height 1219 mm / 48.0 in
Transmission 5-Speed Manual
Gear ratios
3.09:1, 1.89:1, 1.26:1, 0.93:1, :1
Final drive 4.43:1
Acceleration 0-40 km/h 3.0 sec.
Acceleration 0-60 km/h 5.8 sec.
Acceleration 0-80 km/h 9.0 sec.
Acceleration 0-100 km/h (62 mph) 13.0 sec.
Acceleration 0-120 km/h 19.4 sec.
Acceleration 0-140 km/h 27.2 sec.
Acceleration 0-160 km/h (100 mph) 43.2 sec.
0 – 60 mph ~13.9 sec.
0 – 1/4 mile ~19.2 sec.
Top speed 177 km/h (110 mph)
