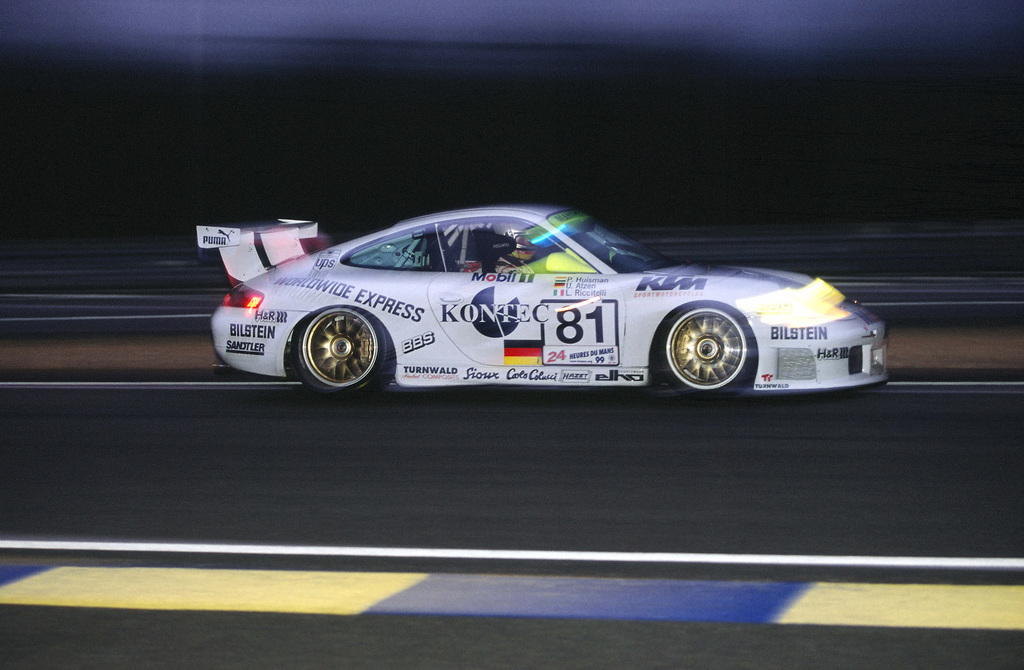

2000 Porsche 911 GT3 R (996) Technical Specifications
2000 Vehicle Description (according to 2000 ACO Le Mans Regulations)
| Type | Racing Car |
| Built At | Germany |
| Engine | Opposed 6 |
| Displacement |
3600 cc / 219.7 in³
|
| Bore |
76.4 mm / 3.01 in
|
| Stroke |
100 mm / 3.94 in
|
| Power |
305.7 kw / 409.9 bhp @ 8200 rpm
|
| Specific Output |
113.86 bhp per litre
|
| Bhp/weight |
369.28 bhp per tonne
|
| Torque |
380 nm / 280.3 ft lbs @ 7000 rpm
|
| Redline | 8500 |
| Driven Wheels |
Rear Engine / RWD
|
| Front Tires | 265/645X18 |
| Rear Tires | 295/680X18 |
| Front Brakes | Vented Discs |
| Front Wheels |
F 45.7 x 25.4 cm / 18.0 x 10.0 in
|
| Rear Wheels |
R 45.7 x 27.9 cm / 18.0 x 11.0 in
|
| Curb Weight |
1110 kg / 2447 lbs
|
| Transmission |
G96/61 Six Speed Manual
|
Detailed Specs
Engine
- Six cylinder boxer engine
- 3600 cc
- 76.4 mm. Stroke, 100mm bore
- Maximum torque 380 nm @ 7000 rpm
- Power 300 kw (410 hp) @ 8200 rpm with 43.1 mm restrictor
- Maximum rpm 8500
- Water cooled with oil heat exchanger
- Dry-sump lubrication
- Intake system with six throttle valves
- Bosch ms 3.1 fuel injection with detonation control
- Exhaust manifold open, without catalytic converter
- 108 RON octane leaded fuel
Powertrain
- Six speed manual transmission type g96/61 with oil cooler cable controlled gear shift mechanism
- Rear wheel drive
- Single mass flywheel with racing clutch
- Limited slip differential — 40/65%
- Gear ratios (as delivered)
- Ring and pinion 7/35
- 1st gear 13/41
- 2nd gear 20/40
- 3rd gear 25/29
- 4th gear 29/36
- 5th gear 32/33
- 6th gear 35/30
Bodywork
- Revised 996 chassis with front and rear composite fender flares
- Composite front nose, front fenders, front and rear hood, doors, rear tail and rear lid
- Aerodynamically optimized front nose and rear tail
- Welded-in safety roll cage
- Racing bucket seat (driver only)
- Six-point seat belt/harness
- Momo steering wheel
- Fire extinguisher
- 100 liter ft 3 safety fuel cell
- Air jacks
- Plastic door, side and rear windows
Suspension
- Electrically actuated power steering
- Mcpherson front suspension with ball joints
- Multilink rear axle with ball joints
- Coil spring with adjustable ride height and rate
- Bilstein adjustable shock absorbers
- Wheels three piece bbs
- Front – 10″ x 18″
- Rear – 11″ x 18″
- Pirelli rain tires
- Front 265/645 x 18
- Rear 295/680 x 18
- Center lock hubs/wheels
- Front roll bar adjustable in five positions
- Rear roll bar adjustable in three positions
- Drive shafts with cv joints
Brake System
- Twin pedal system with two master cylinders and balance bar
- Internally vented brake discs
- Front – 380mm diameter
- Rear – 355 mm diameter
- No abs
Electronics
- Bosch MS 3.1 engine management
- Stack display with integrated data recording (data recording device: optional)
- lap trigger over Stack display
- 12V 50 Ah battery
- Alternator 110 amp
Vehicle weight
- Approximately 1,100 kg (2442 lb.) per Le Mans Regulations
Delivery
- December through March 2000
Color Exterior and interior
- Biarritz white Z2
Options
- Guards red G1
- Black A1
- Speed yellow X4
