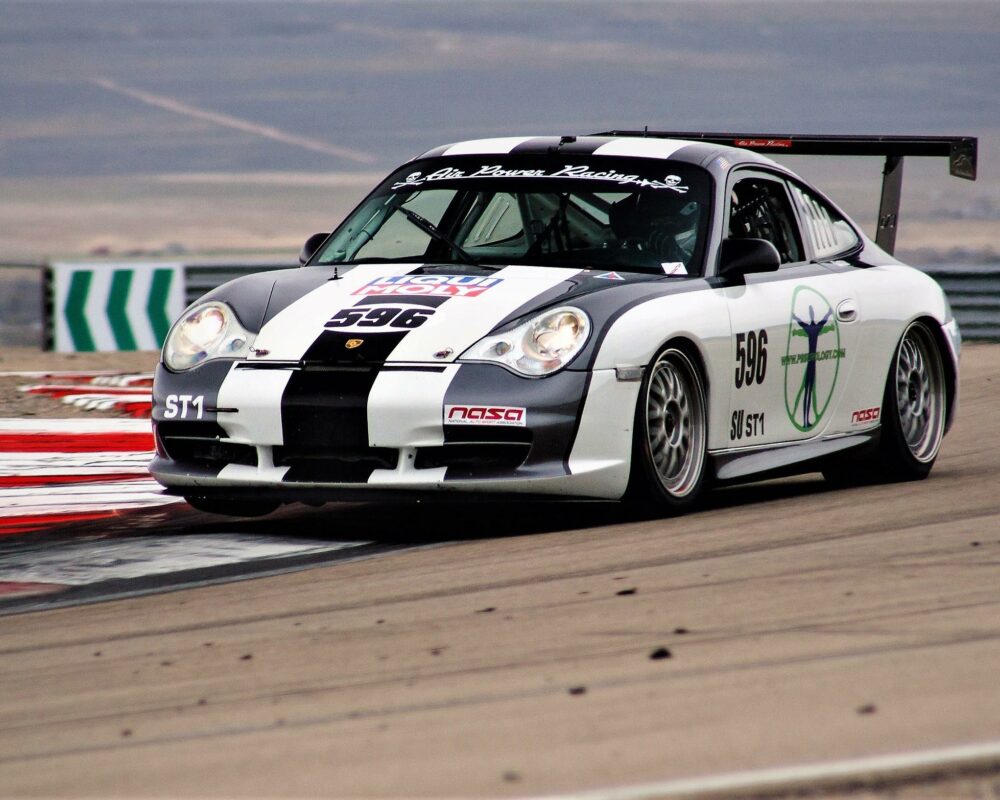

Porsche 911 GT3 Cup (996)(2003 – 2005) – Specifications & Performance

Porsche 911 GT3 Cup (996)(2003 - 2005) – Specifications

2003-2005 Porsche 911 GT3 Cup (996) Technical Specifications

Type Racing Car
Built at Germany
Engine Flat-6 w/Dry Sump Lubrication
Position Rear Longitudinal
Valvetrain 4 Valves per Cyl
Fuel feed sequential multi-point fuel injection
Displacement 3598 cc / 219.6 in³
Bore 76.4 mm / 3.01 in
Stroke 100 mm / 3.94 in
Power 385 bhp @ 7250 rpm
Specific output 106.9 bhp per litre
Bhp/weight 333.33 bhp per tonne
Torque 288 ft lbs @ 6500 rpm
Redline 8000
Driven wheels RWD w/40-60 LSD
Front tires 245/645-18
Rear tires 305/660-18
Front brakes Internally Ventilated Discs w/6-Piston calipers, ABS
Rear brakes Internally Ventilated Discs w/4-Piston calipers, ABS
Front wheels F 45.7 x 22.9 cm / 18.0 x 9 in
Rear wheels R 45.7 x 27.9 cm / 18 x 11 in
Steering Rack & Pinion w/Power Assist
F suspension
McPherson, adjustable camber, anti roll bar (five positions)
R suspension
multi link, rigid suspended subframe, strengthened tie-rod infinitely adjustable; anti roll bar (four positions)
Curb weight 1140 kg / 2513 lbs
Wheelbase 2355 mm / 92.7 in
Front track 1495 mm / 58.9 in
Rear track 1503 mm / 59.2 in
Transmission 6-Speed Manual
