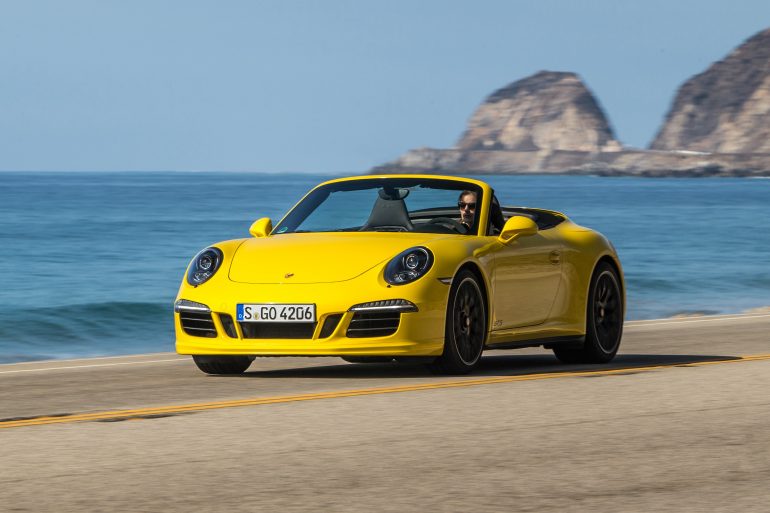

Porsche 911 Carrera GTS Cabriolet (991) (2016) – Specifications & Performance

2016 Porsche 911 Carrera GTS Cabriolet (991) Technical Specifications

Engine layout Rear Engine
Engine type Boxer-6
Cylinders 6
Valves per cylinder 4
Construction Aluminum block and heads
Fuel injection Direct Fuel Injection (DFI)
Fuel Premium
Displacement (Liters) 3.8
Bore/Stroke (mm/mm) 102 mm / 77.5 mm
Maximum horsepower @ rpm 430 hp @ 7500 rpm
Maximum torque @ rpm 325 lb. -ft. @ 5750 rpm
Maximum engine speed (rpm) 7800
Compression ratio 12.5 1
Output per liter 113.2 hp
Lubrication Integrated dry-sump
Electrical System 12 V, 2600 W alternator; battery capacity 70 Ah
Power to weight ratio [lb/hp] 7.67 / 7.77 (PDK)
Management SDI 9
Drivetrain Rear wheel drive
Body Monocoque lightweight body in a combination of steel, aluminum and magnesium
Front Axle MacPherson strut aluminum double wishbone
Rear Axle Aluminum multi-link
Steering System Variable ratio power steering
Steering Ratio 16.6 1
Turning Circle 36.4 ft
Brakes & Wheels
Caliper type Aluminum monobloc fixed-caliper brake
Rotor material Steel
Caliper color Red
Number of pistons (front/rear) 6/4
Rotor diameter (front/rear) mm 340 mm / 330 mm
Rotor thickness (front/rear) mm 34 mm / 28 mm
Standard wheel [size & name] 20″ 911 Turbo S
Wheels (front/rear) Tires (front/rear) 9J x 20″ ET51 / 11.5J x 20″ ET48 245/35 ZR 20 / 305/30 ZR 20
Number of gears 7-speed
Transmission type 7-speed manual / 7-speed PDK
Ratios
1st 3.91
2nd 2.29
3rd 1.55/1.65
4th 1.3
5th 1.08
6th 0.88
7th 0.71/0.62
8th
Reverse 3.55
Front Axle Ratio
Rear Axle Ratio 3.44
Dimensions, Aerodynamics, & Weight
Length (inches/mm) 177.5 in. / 4509 mm
Wheelbase (inches/mm) 96.5 in. / 2450 mm
Width w/ mirrors (inches/mm) 77.9 in. / 1978 mm
Width w/o mirrors (inches/mm) 72.9 in. / 1852 mm
Height-PASM 50.9 in. / 1292 mm
Height-PASM and Sport Suspension
Track width front (inches/mm) 60.6 in. / 1538 mm
Track width rear (inches/mm) 61.4 in. / 1560 mm
Drag coefficient (Cd) 0.3
Luggage compartment volume (cu.-ft.) 125 l / 33.0 gal.
Fuel tank capacity – refill volume (gal) 16.9 gal.
Curb weight (lbs) min 3296 lbs. / 3340 lbs.
Curb weight (lbs) max 3494 lbs. / 3538 lbs.
Gross Vehicle Weight (lbs) 4200 lbs. / 4244 lbs.
Payload range (lbs) – depend on options 705 lbs. 904 lbs.
Roof load- Max (lbs)
Ground Clearance (Sports Cars)
Ramp-over angle-PASM (degrees) 11.7°
Approach angle-PASM (degrees) 11.6° / 8.8° (w/ spoiler lip)
Departure angle- PASM (degrees) 13.4°
Ramp-over angle- PASM and Sport Suspension (degrees)
Approach angle-PASM and Sport Suspension (degrees)
Departure angle-PASM and Sport Suspension (degrees)
Performance
Top track speed (mph) (Manual/PDK) 189 mph / 188 mph
Acceleration 0-60 (sec) (Manual) 4.4 sec
Acceleration 0-60 (sec) (PDK w/ Sport Chrono) 4.0 sec
Fuel Economy/Rating LEV II
City (Manual/PDK) 17 mpg / 18 mpg
Highway (Manual/PDK) 25 mpg / 26 mpg
