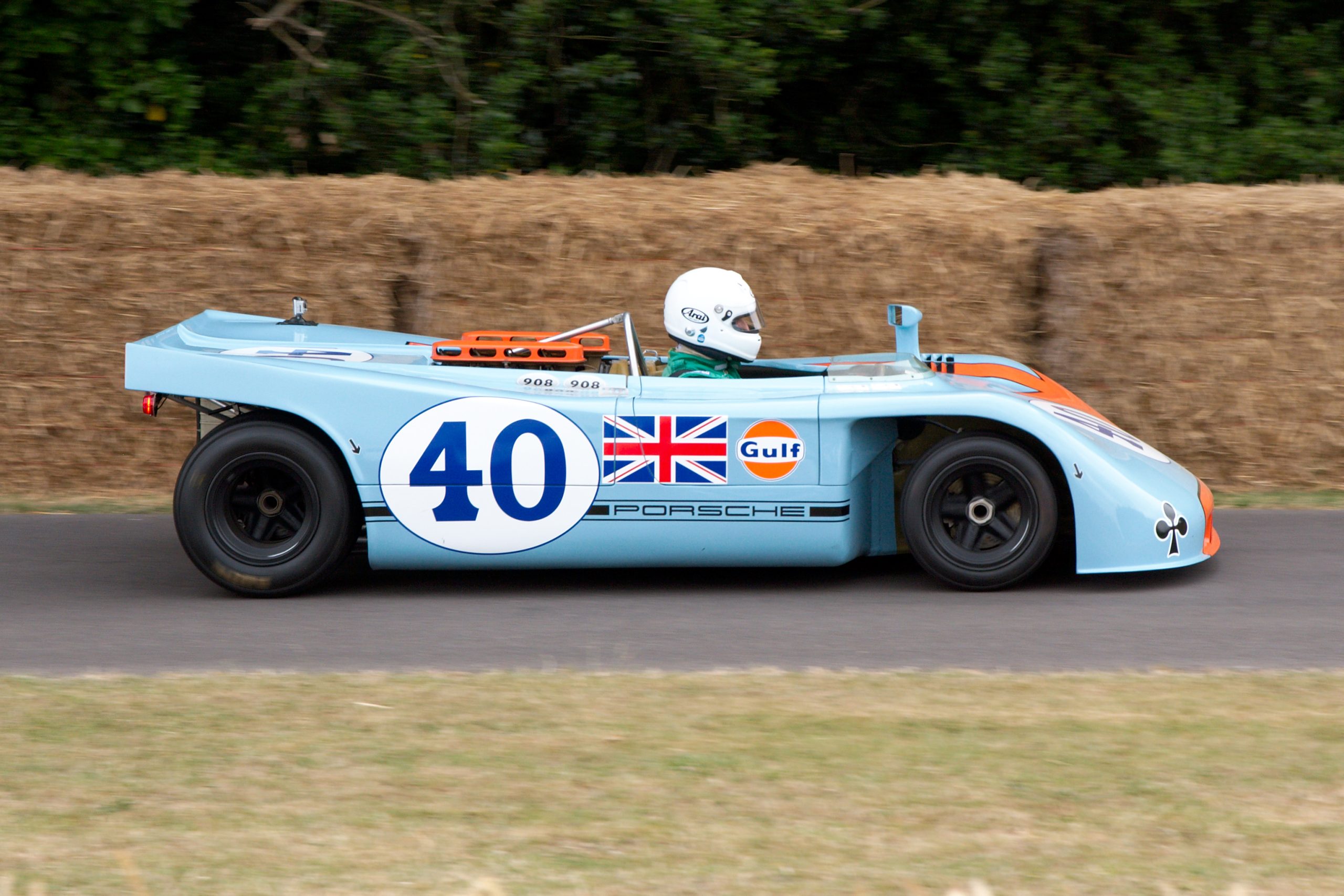

Porsche 908/03 Spyder – Specifications & Performance

Technical Specifications

Porsche 908/03 Spyder Specifications

type Racing Car
production years 1969 – 1971
built at Germany
production 13
engine Air-Cooled Flat-8
position Mid, Longitudinal
aspiration Natural
valvetrain DOHC, 2 Valves per Cyl
fuel feed Bosch Mechanical Injection
displacement 2997 cc / 182.9 in³
bore 85 mm / 3.35 in
stroke 66 mm / 2.6 in
compression 10.4:1
power 268.5 kw / 360 bhp @ 8400 rpm
specific output 120.12 bhp per litre
bhp/weight 666.67 bhp per tonne
torque 365 nm / 269.2 ft lbs @ 6600 rpm
body / frame
Plastic Bodywork over Aluminum Tubular Spaceframe
driven wheels RWD w/LSD
steering Rack & Pinion
f suspension
Double Wishbones w/Coil Springs, Shock Absorbers, Anti-Roll Bar
r suspension
Double Wishbones w/Radius Arms, Coil Springs, Shock Absorbers, Anti-Roll Bar
curb weight 540 kg / 1190 lbs
wheelbase 2300 mm / 90.6 in
length 3540 mm / 139.4 in
width 1950 mm / 76.8 in
height 675 mm / 26.6 in
transmission 5-Speed Manual
top speed ~276.8 kph / 172 mph
